REPAIRS
Refit
1. Position ECU, connect and secure multiplugs.
2. Fit ECU to mounting and secure clips.
3. Fit and secure cover.
4. Fit battery.
Actuator - ratio control
$% 41.30.03
Remove
1. Position vehicle on lift and select 'Low Range'.
2. Switch off ignition.
3. With neutral selected on automatic gearbox,
check that a fuse is not fitted in position 37 of
main fuse box. Remove fuse if fitted.
4. Raise the lift.
5. Ensure area to be dismantled is clean.
6. Position a container to collect any spillage.

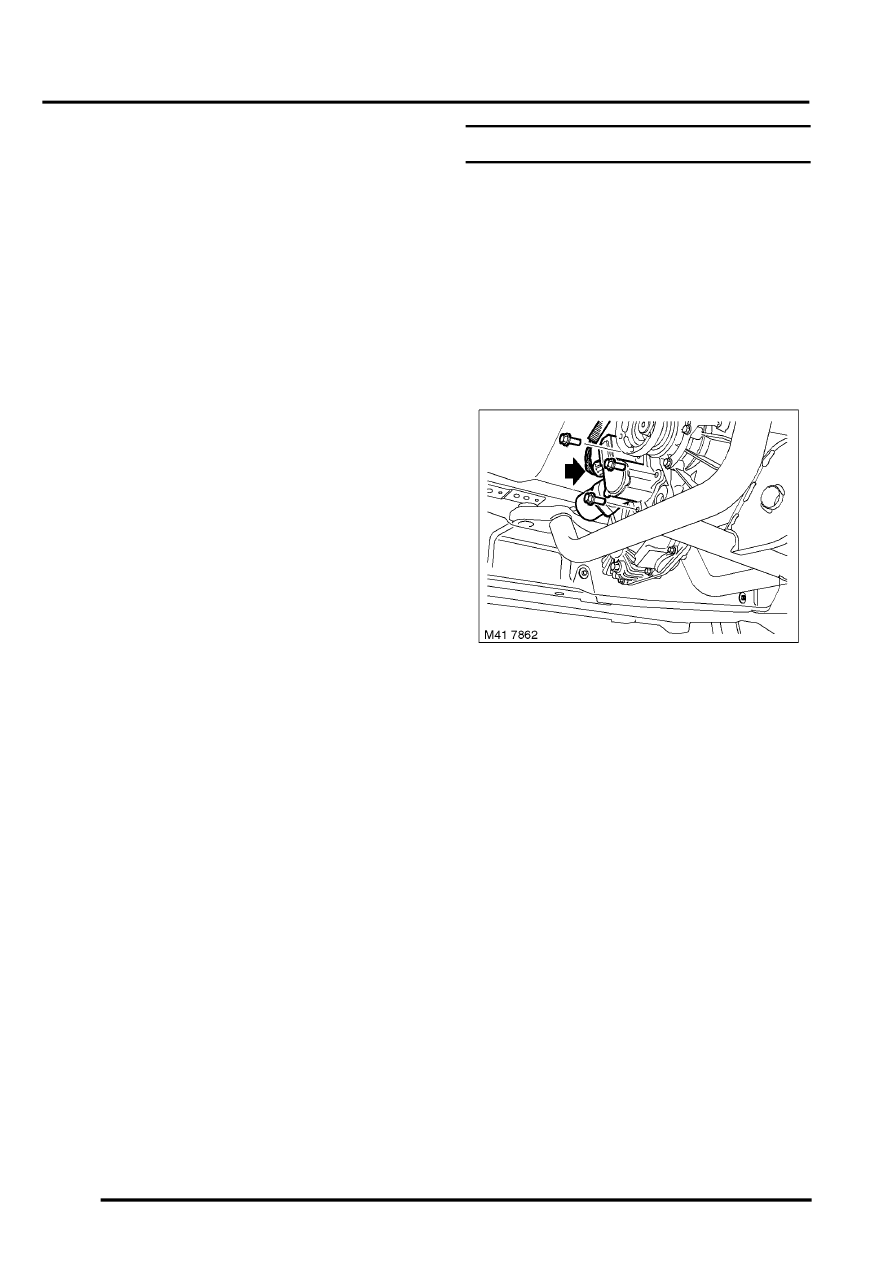

7. Rotate multiplug anti-clockwise to release and
disconnect from ratio control actuator.
8. Remove 3 bolts securing ratio control assembly
to transfer gearbox.
