L322 Range Rover Service Procedures
TRANSFER BOX
REPAIRS
41-11
Oil seal - rear output shaft
$% 41.20.54
Remove
1. Remove rear propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
2. Release output shaft flange nut stake.

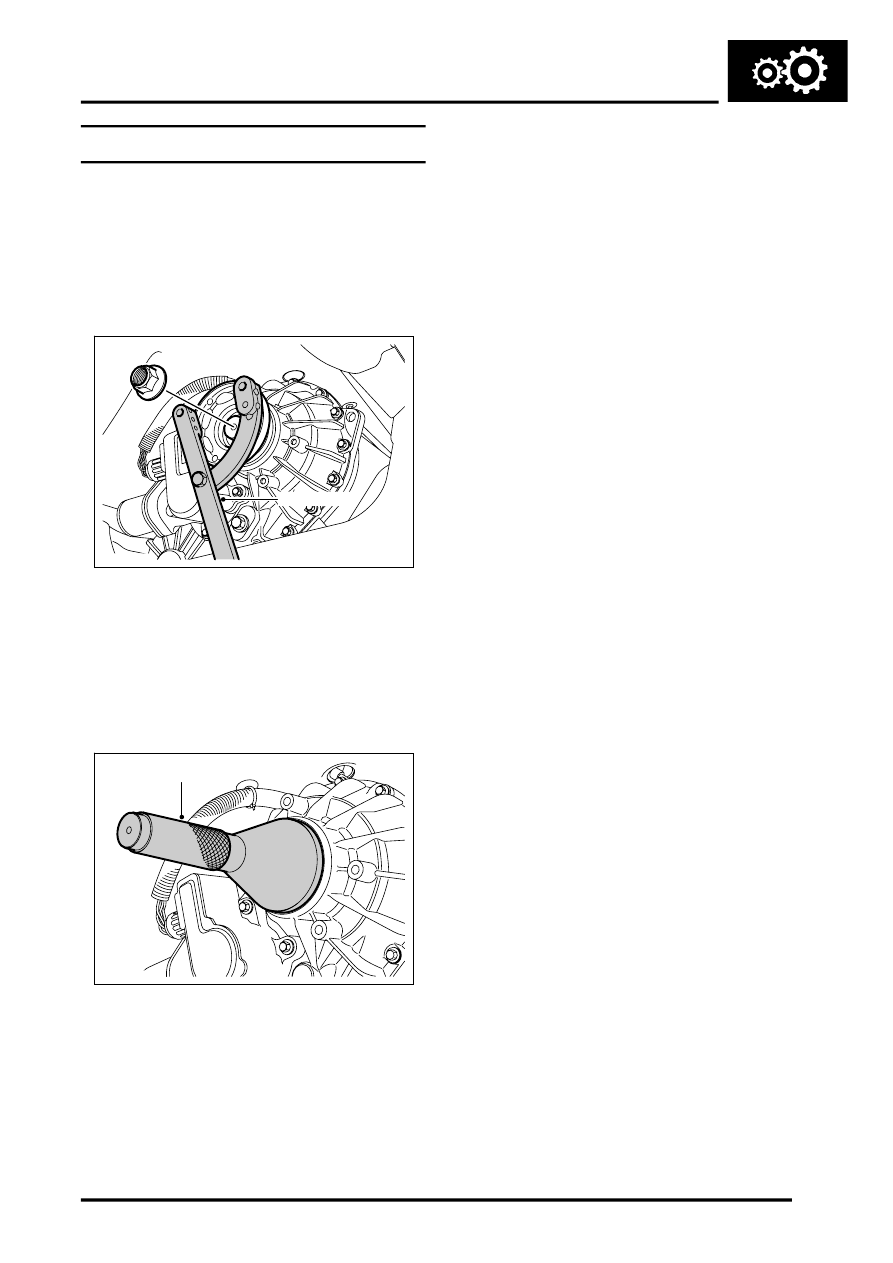

3. Using LRT-51-003 to restrain drive flange,
remove nut and remove drive flange. Discard
nut and 'O' ring.
4. Remove seal from transfer gearbox.
Refit
1. Clean oil seal recess in transfer gearbox.
2. Using LRT-41-020 fit seal to transfer gearbox
box.
3. Clean drive flange and mating face.
4. Fit flange, use new 'O' ring and tighten new nut
to 100 Nm (74 lbf.ft).
5. Stake output shaft flange nut to shaft.
6. Fit rear propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
7. Check and if necessary, top up transfer
gearbox oil.
M41 7850
LRT-51-003
M41 7851
LRT-41-020
