9. Apply thin coat of anti-seize grease to shaft
splines.
10. Fit transfer gearbox and tighten Torx bolts to 43
Nm (32 lbf.ft).
11. Connect multiplug.
12. Connect breather hose to gearbox.
13. Fit and secure oxygen sensor leads.
14. Remove support from transfer gearbox.
15. Fit snubbers.
16. Fit cross member to mounting, fit nut and bolt
but do not tighten at this stage.
17. Raise gearbox on jack.
18. Align cross member, fit bolts and tighten to 68
Nm (50 lbf.ft).
19. Remove support from gearbox.
20. Tighten nut and bolt securing mounting to cross
member to 100 Nm (74 lbf.ft).
21. Fit heat shield and secure with nuts.
22. Fit rear propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
23. Fit front propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
24. Refill transfer gearbox with oil.
25. Fit fan to pulley and tighten viscous coupling
nut to 45 Nm (33 lbf.ft).
Oil seal - input shaft
$% 41.20.50
Remove
1. Remove transfer gearbox.
2. Lever input shaft oil seal from transfer gearbox.
Refit
1. Clean oil seal recess in transfer gearbox.

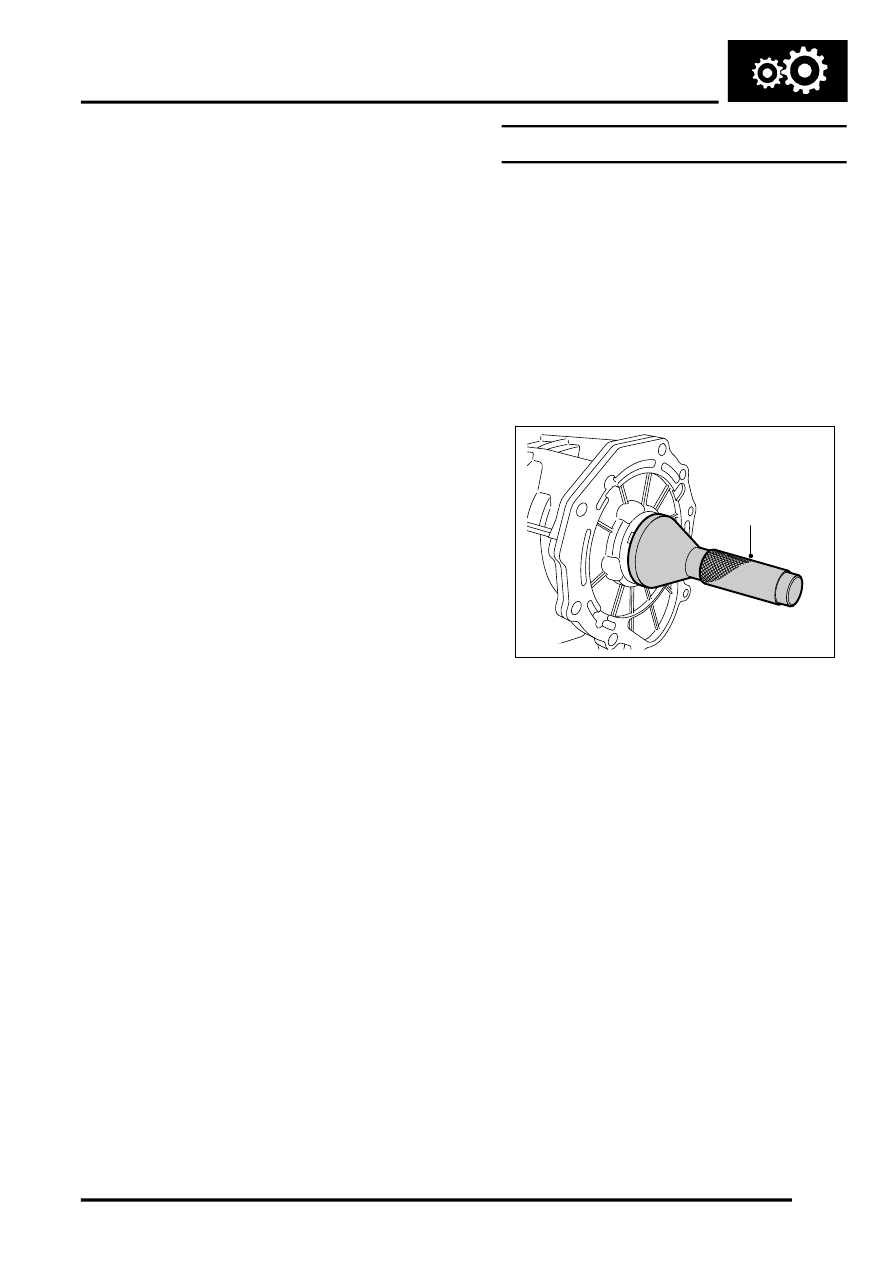

2. Using LRT-41-019 fit seal to transfer gearbox.
3. Fit transfer gearbox.
M41 7846
LRT-41-019
