Range Rover P38
BMW DIESEL
13
REPAIR
TURBOCHARGER
Service repair no - 19.42.01
Remove
1. Disconnect battery negative lead.
2. Raise the vehicle.
WARNING: Support on safety stands.
3. Remove exhaust system front pipe.
See
MANIFOLD AND EXHAUST SYSTEM, Repair.
4. Remove heat shield.
See MANIFOLD AND
EXHAUST SYSTEM, Repair.

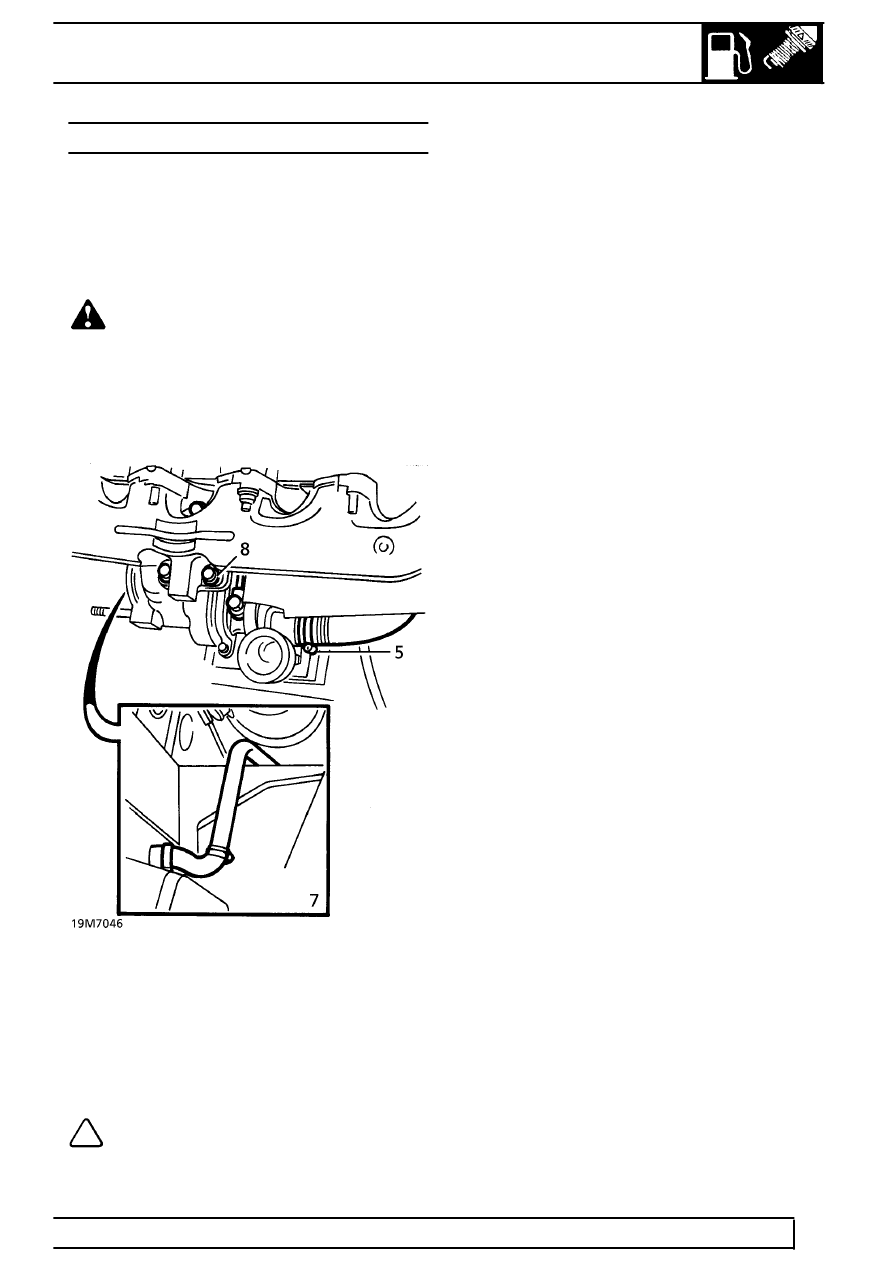

5. Disconnect intake hose from turbocharger.
6. Disconnect oil feed pipe from turbocharger.
Collect sealing washers and discard.
7. Disconnect oil drain hose from turbocharger.
8. Remove 3 bolts securing turbocharger to
exhaust manifold.
9. Remove turbocharger. Collect gasket and
discard.
NOTE: Plug all connections to prevent
ingress of dirt.
Refit
10. Ensure all mating faces are clean.
11. Remove plugs. Position new gasket on manifold.
Position turbocharger.
12. Secure turbocharger with bolts. Tighten to
45
Nm (33 lbf.ft)
13. Connect oil drain hose to turbocharger. Secure
with clip.
14. Position oil feed pipe with new washers. Secure
with banjo bolt. Tighten to
25 Nm (18 lbf.ft)
15. Connect intake hose to turbocharger. Secure
with clip.
16. Fit exhaust system front pipe.
See MANIFOLD
AND EXHAUST SYSTEM, Repair.
17. Fit heat shield.
See MANIFOLD AND
EXHAUST SYSTEM, Repair.
18. Remove safety stands. Lower vehicle.
19. Reconnect battery negative lead.
