33
CLUTCH
NEW RANGE ROVER
2
REPAIR

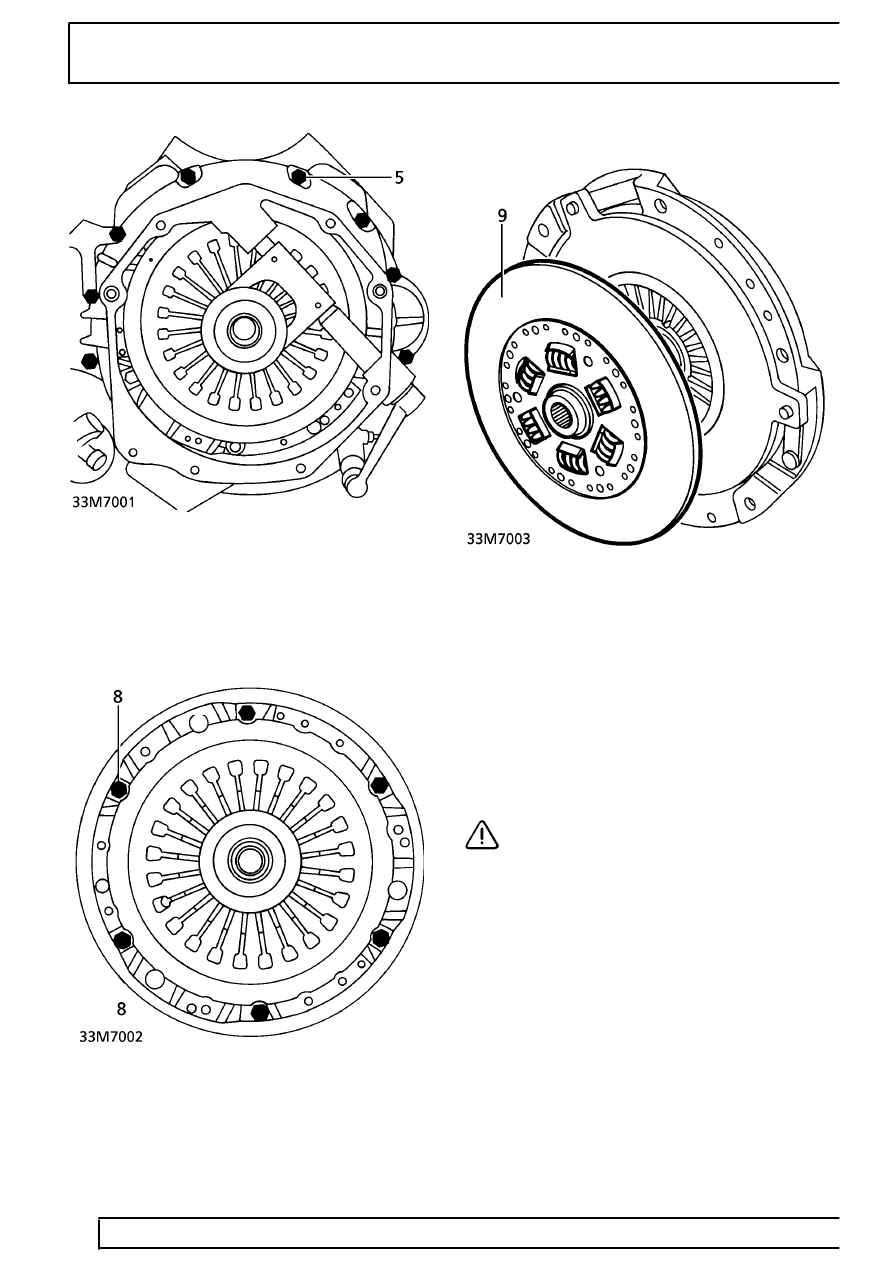

6. If clutch cover is to be refitted, mark cover and
flywheel to aid re-assembly.
7. Restrain flywheel.
8. Working diagonally, sequentially slacken 6 bolts
securing clutch cover to flywheel. Remove bolts.
9. Remove cover assembly. Collect friction plate.
Check
10. Check linings of friction plate for excessive or
uneven wear, burning or contamination.
11. Check splines of friction plate for excessive
wear.
12. Check friction surface of cover for burning
distortion or scoring.
13. Check fingers of cover for cracks and distortion.
14. Check release bearing for smooth operation.
15. Renew components as necessary.
CAUTION: Bearing is packed with grease,
do not wash in solvent.
