Range Rover P38
75
SUPPLEMENTARY RESTRAINT SYSTEM
NEW RANGE ROVER
4
REPAIR

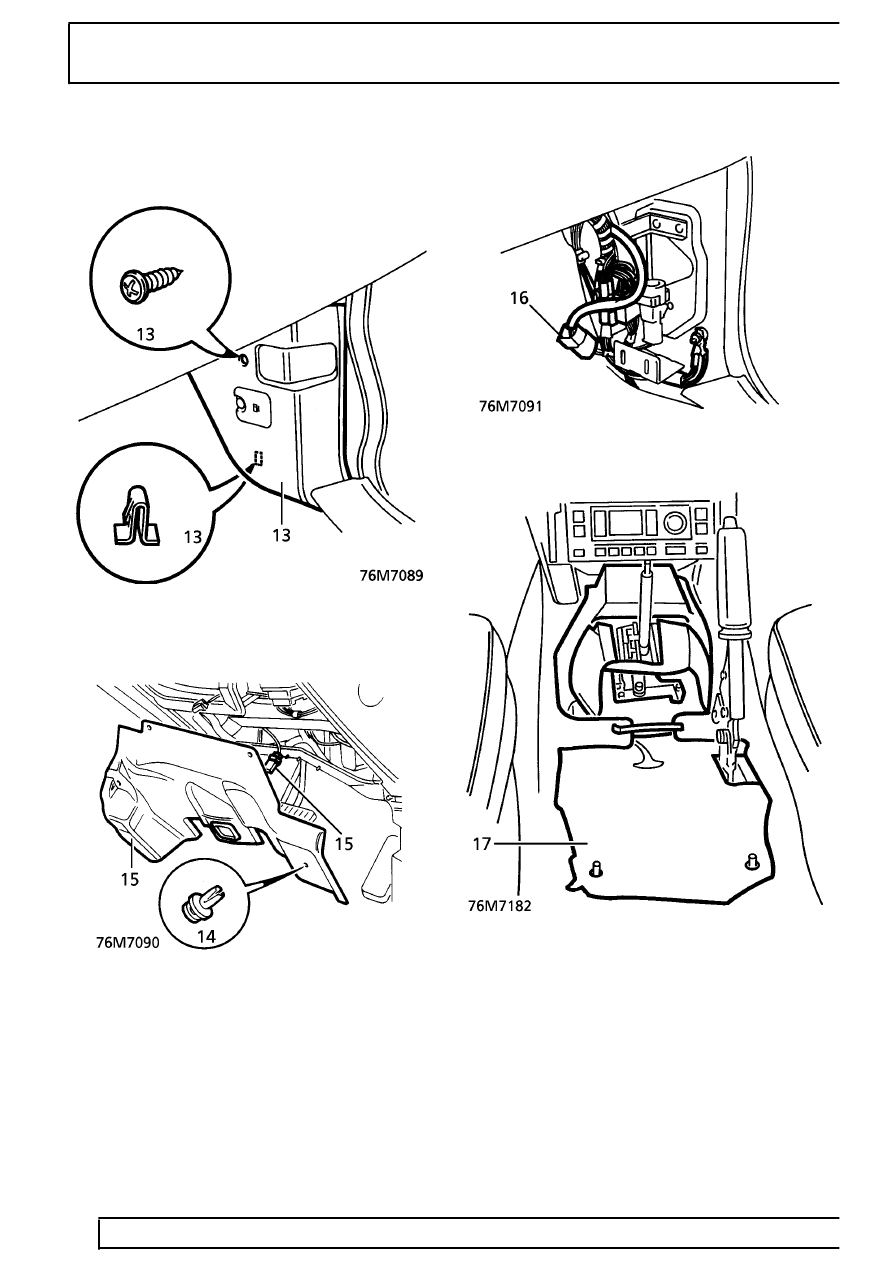

13. Remove screw securing each A post lower trim
panel. Release panels from sprag clips. Remove
both trim panels.
14. Remove 4 scrivet fasteners securing driver’s
side lower closing panel.
15. Disconnect footwell lamp multiplug. Remove
closing panel.
16. Disconnect SRS harness from main harness.
Release multiplug from clip.
17. Remove sound deadener pad from transmission
tunnel.
18. Disconnect multiplug from SRS DCU. Release 3
harness clips.
19. Remove both front wheel arch liners.
See
CHASSIS AND BODY, Repair.
