Cooling fans – fault diagnosis

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Cooling fans – fault diagnosis

Cooling fansCooling fans – fault diagnosis

COOLING FANS – FAULT DIAGNOSIS

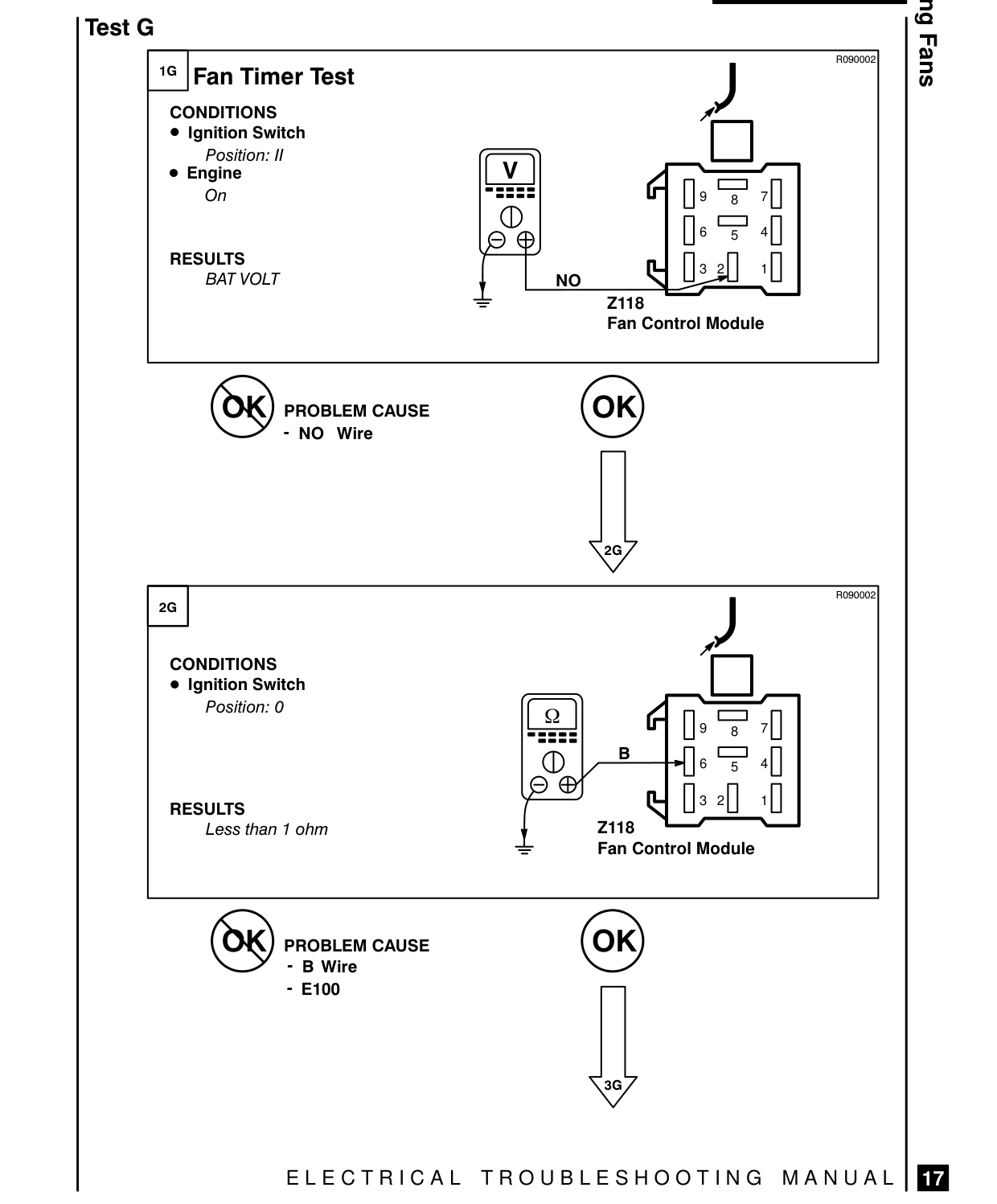

Test G Fan Timer Test CONDITIONS ® Ignition Switch ® Engine Position: I On

RESULTS BAT VOLT

(5) PROBLEM CAUSE - NO Wire

® Ignition Switch CONDITIONS

Position: 0

RESULTS Less than 1 ohm

(59) PROBLEM CAUSE - B Wire

- E100

ELECTRICAL

R090002

Pp

A IE = 7] OD IE — 4] Oo PD NO N Js Al Z118 Fan Control Module

R090002

SHEERS dl aD 6 — 4] N [sf] Z118 Fan Control Module

TROUBLESHOOTING MANUAL

32 Engine
