Cooling fans – fault diagnosis
- Make
- Land Rover
- Model
- Range Rover Classic Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Fault diagnosis › Cooling fans – fault diagnosis
Cooling fansCooling fans – fault diagnosis

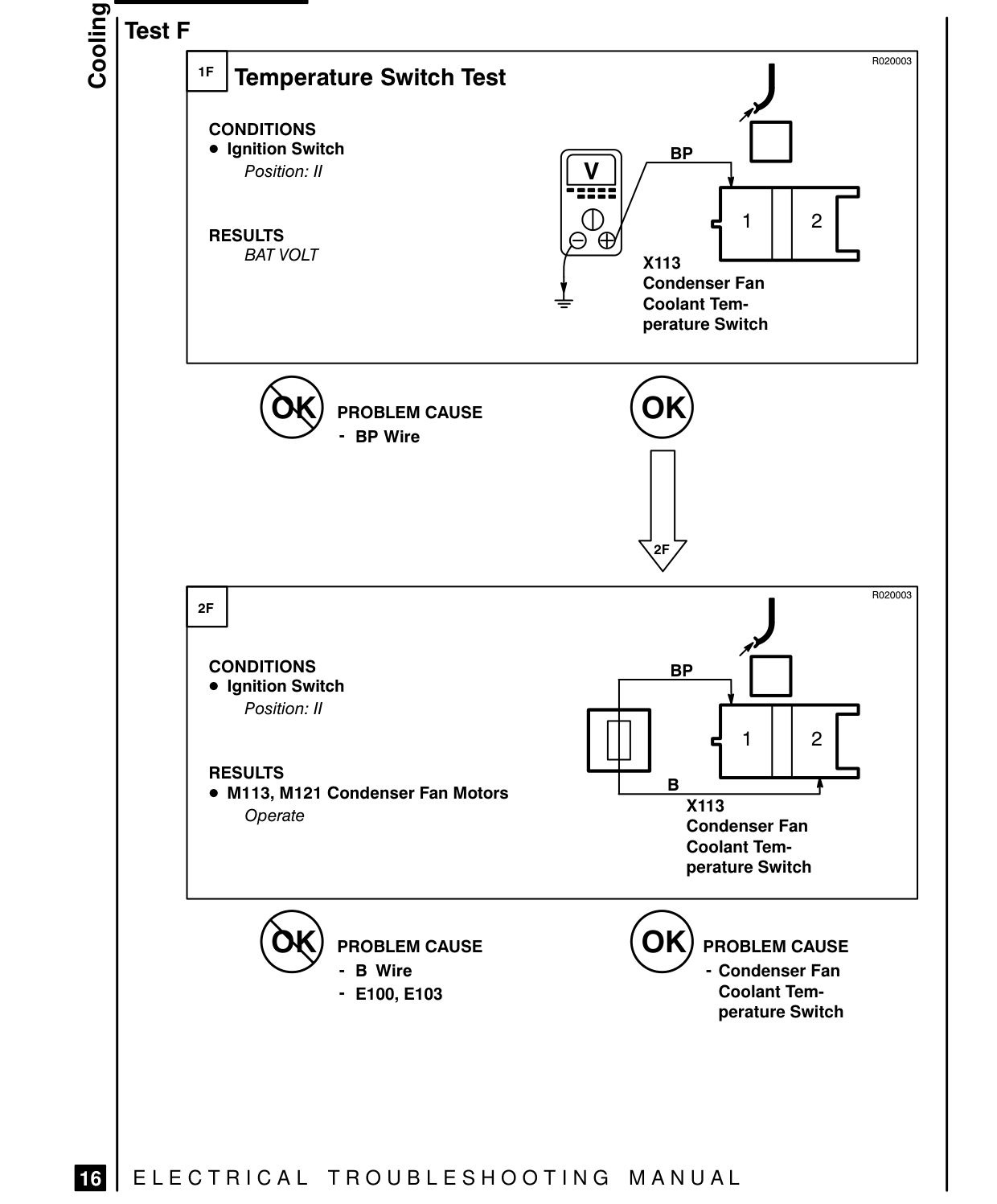

COOLING FANS – FAULT DIAGNOSIS
oO) ES | Test F
Oo 'F | Temperature Switch Test CONDITIONS ® Ignition Switch Position: II
BAT VOLT
(59) PROBLEM CAUSE - BP Wire
or | CONDITIONS e Ignition Switch Position: II RESULTS e M113, M121 Condenser Fan Motors Operate
(59) PROBLEM CAUSE - B Wire - E100, E103
EB | ELECTRICAL TROUBLESHOOTING MANUAL
R020003
BP
X113 Condenser Fan Coolant Temperature Switch
R020003
BP
[i] LT X113 Condenser Fan Coolant Temperature Switch
PROBLEM CAUSE - Condenser Fan Coolant Temperature Switch
