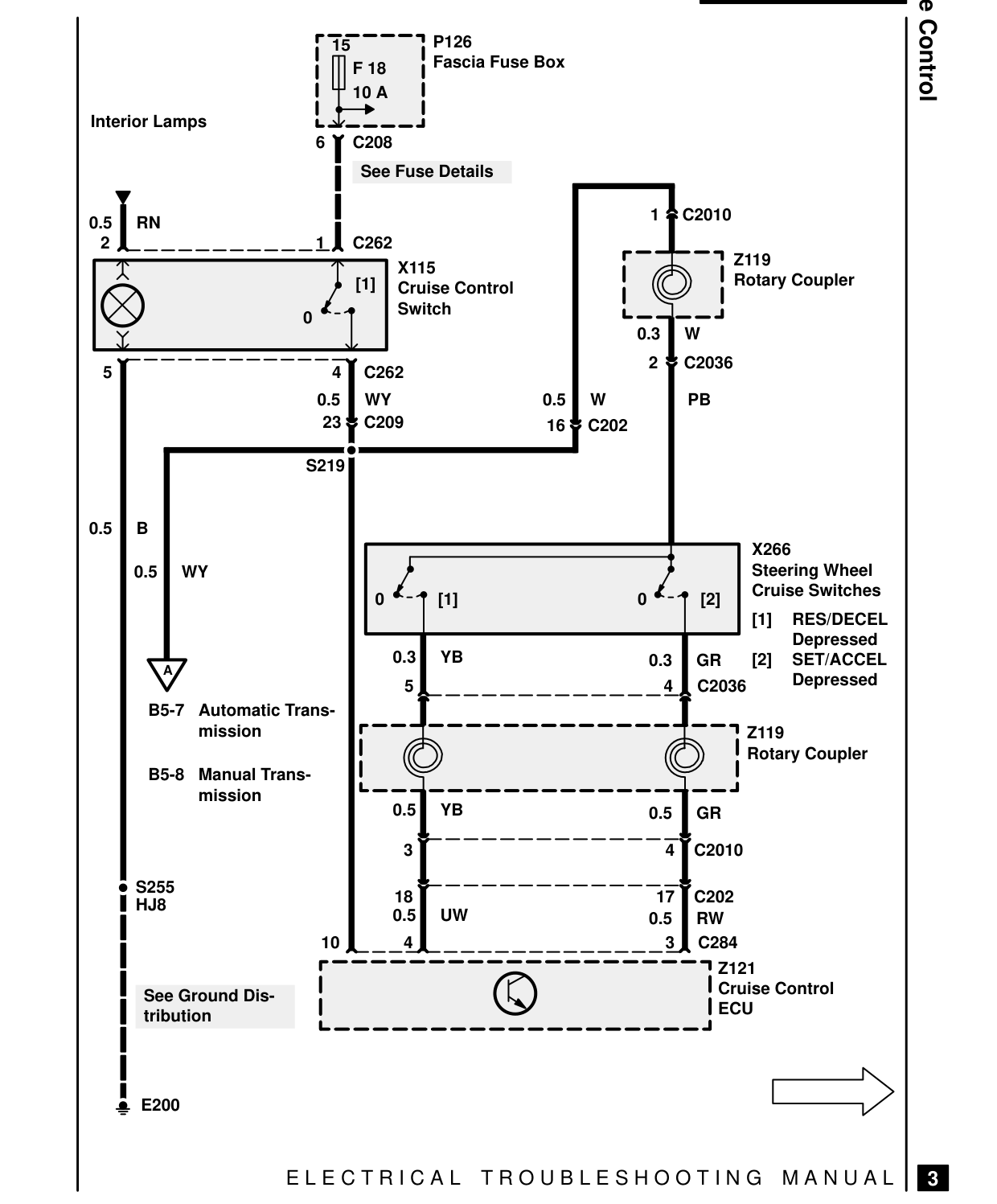

Cruise control – circuit diagram

CRUISE CONTROL – CIRCUIT DIAGRAM

P126



Fascia Fuse Box F 18 10 A Interior Lamps 6 C208 See Fuse Details

0.5 RN 2 1 C262 X115 [1] Cruise Control Switch 0

5 4 C262 0.5 WY 23 C209

S219

0.5 B

0.5 WY 0 [1]

0.3 YB A 5 Automatic Trans- B5-7 mission

Manual Trans- B5-8 mission 0.5 YB

3

S255 18 HJ8 0.5 UW 10 4

See Ground Dis- tribution

E200

E L E C T R I C A L

Cruise Control

1 C2010

Z119 Rotary Coupler

0.3 W 2 C2036

PB 0.5 W 16 C202

X266 Steering Wheel Cruise Switches 0 [2] [1] RES/DECEL Depressed [2] SET/ACCEL 0.3 GR Depressed 4 C2036

Z119 Rotary Coupler

0.5 GR

4 C2010

17 C202 0.5 RW 3 C284 Z121 Cruise Control ECU

T R O U B L E S H O O T I N G M A N U A L

3
