Introduction

INTRODUCTION

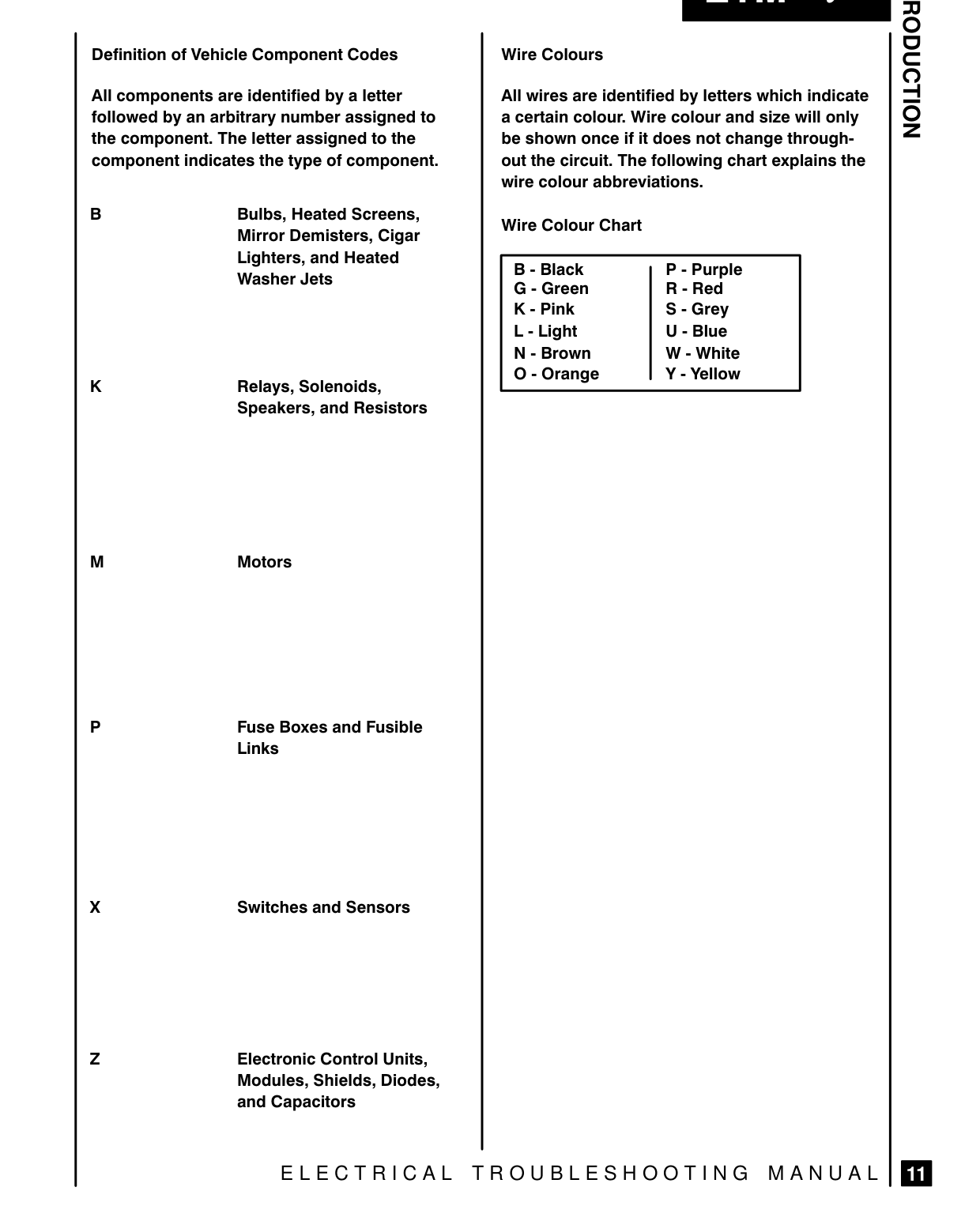

Definition of Vehicle Component Codes

All components are identified by a letter followed by an arbitrary number assigned to the component. The letter assigned to the component indicates the type of component.

Bulbs, Heated Screens, Mirror Demisters, Cigar Lighters, and Heated Woshar Jats

Relays, Solenoids, Speakers, and Resistors

Motors

Fuse Boxes and Fusible

Links

Switches and Sensors

Zz Electronic Control Units, Modules, Shields, Diodes, and Capacitors

ELECTRICAL TROUBLESHOOTING MANUAL | i

Wire Colours Cc

All wires are identified by letters which indicate a certain colour. Wire colour and size will only be shown once if it does not change throughout the circuit. The following chart explains the wire colour abbreviations.

Wire Colour Chart

B - Black P - Purple G - Green R - Red K - Pink S - Grey L - Light U - Blue N - Brown W - White O - Orange Y - Yellow
