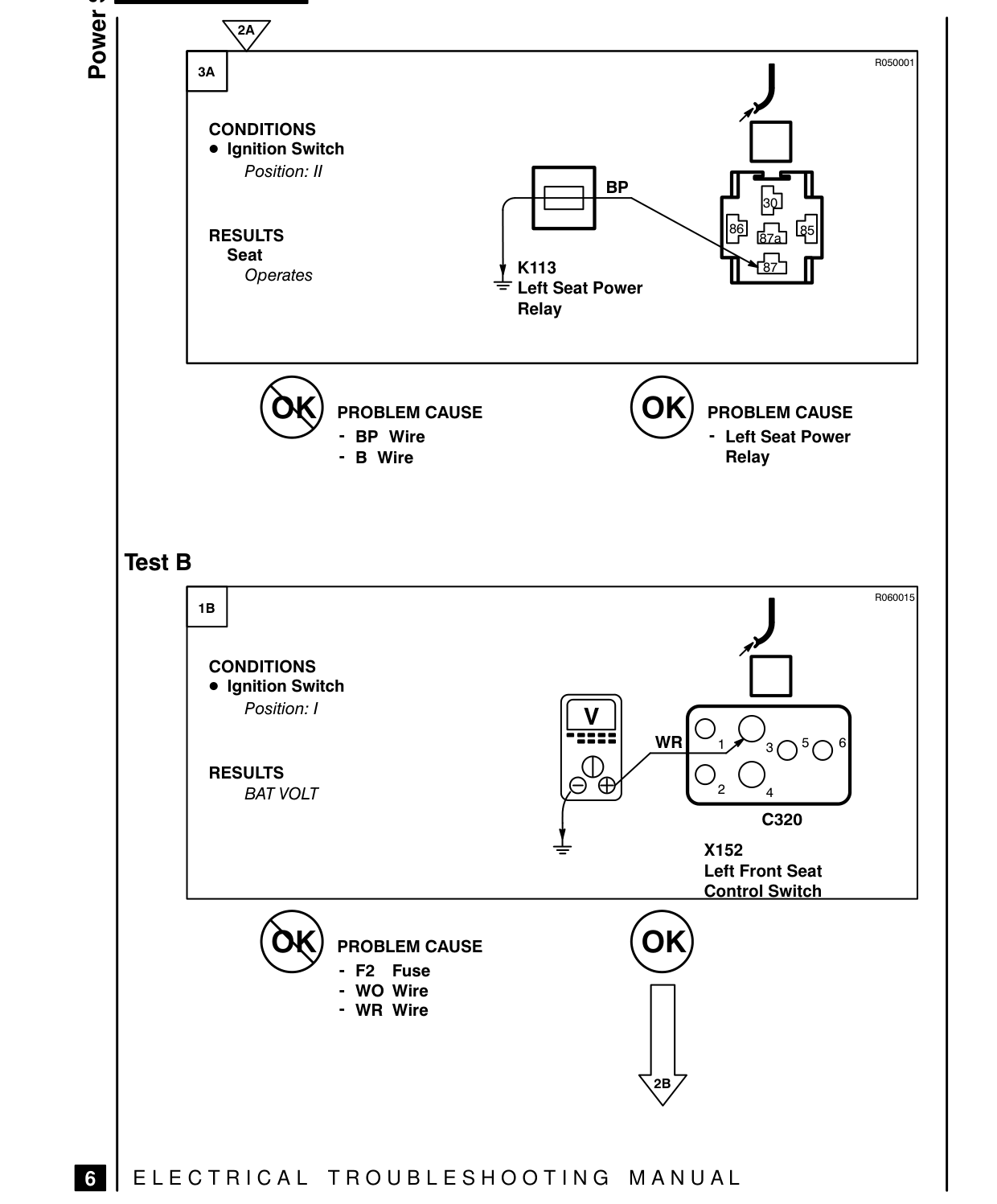

POWER SEATS – FAULT DIAGNOSIS

7p]

an | CONDITIONS ® Ignition Switch Position: Il

RESULTS Seat Operates

(59) PROBLEM CAUSE - BP Wire - B Wire

Test B

1s | 1B CONDITIONS e Ignition Switch Position: |

RESULTS BAT VOLT

(59) PROBLEM CAUSE F2 Fuse - WO Wire - WR Wire

IB | ELECTRICAL TROUBLESHOOTING MANUAL

R050001

|— | ep ah el K113 [87° = Left Seat Power Relay

PROBLEM CAUSE Left Seat Power Relay

R060015

WR O, 050 SB Oo O C320

X152 Left Front Seat Control Switch
