POWER SEATS – FAULT DIAGNOSIS

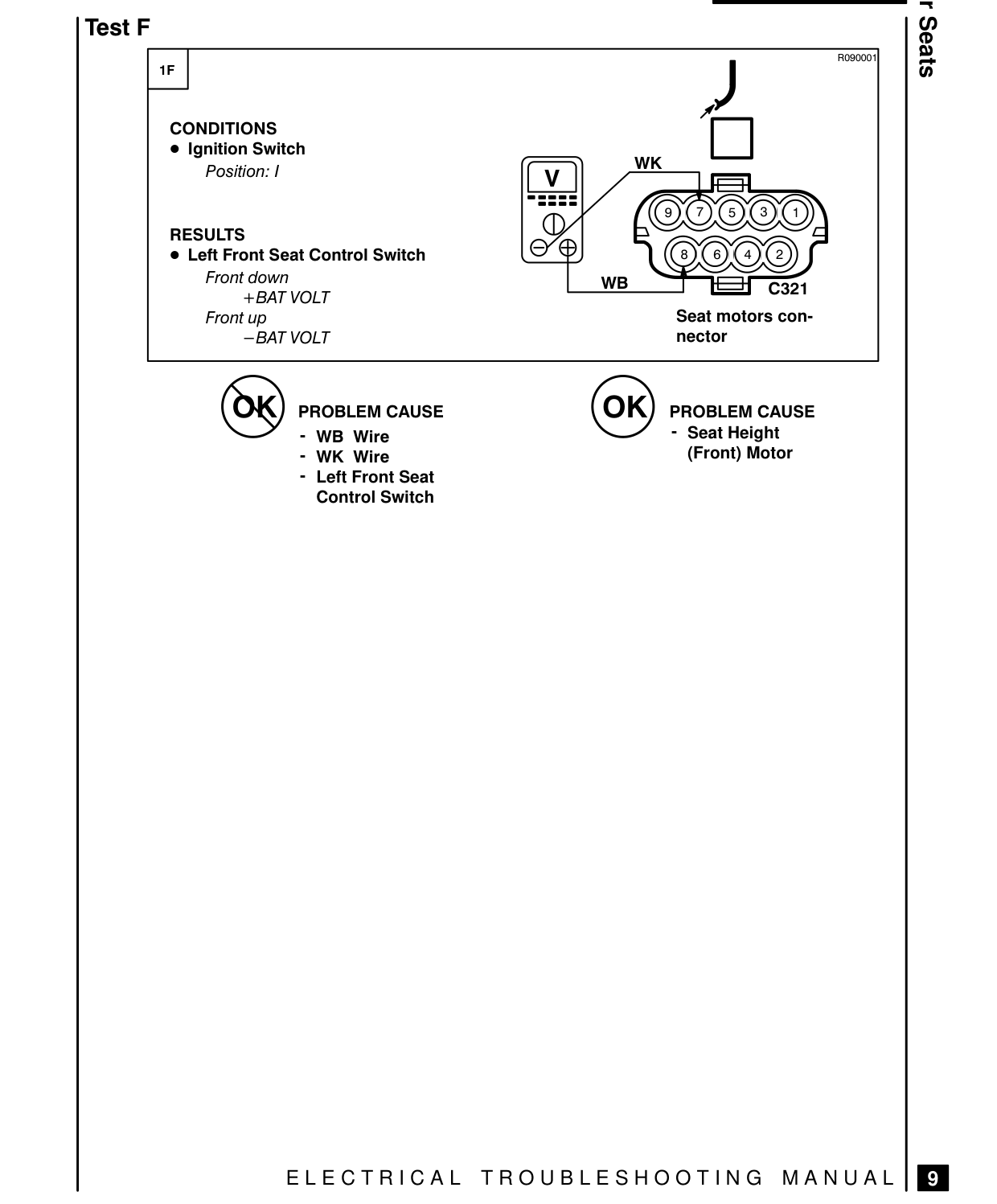

Test F

e Ignition Switch CONDITIONS

Position: | RESULTS ® Left Front Seat Control Switch Front down +BAT VOLT Front up —BAT VOLT

(59) PROBLEM CAUSE - WB Wire - WK Wire Left Front Seat Control Switch

ELECTRICAL TROUBLESHOOTING MANUAL | IE}

R090001 oD

WK py diN(010000 SA 321 Seat motors conhector

PROBLEM CAUSE - Seat Height (Front) Motor
