Radio (except Japan) – fault diagnosis

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Radio (except Japan) – fault diagnosis

Radio (EXCEPT Japan)Radio (except Japan) – fault diagnosis

RADIO (EXCEPT JAPAN) – FAULT DIAGNOSIS

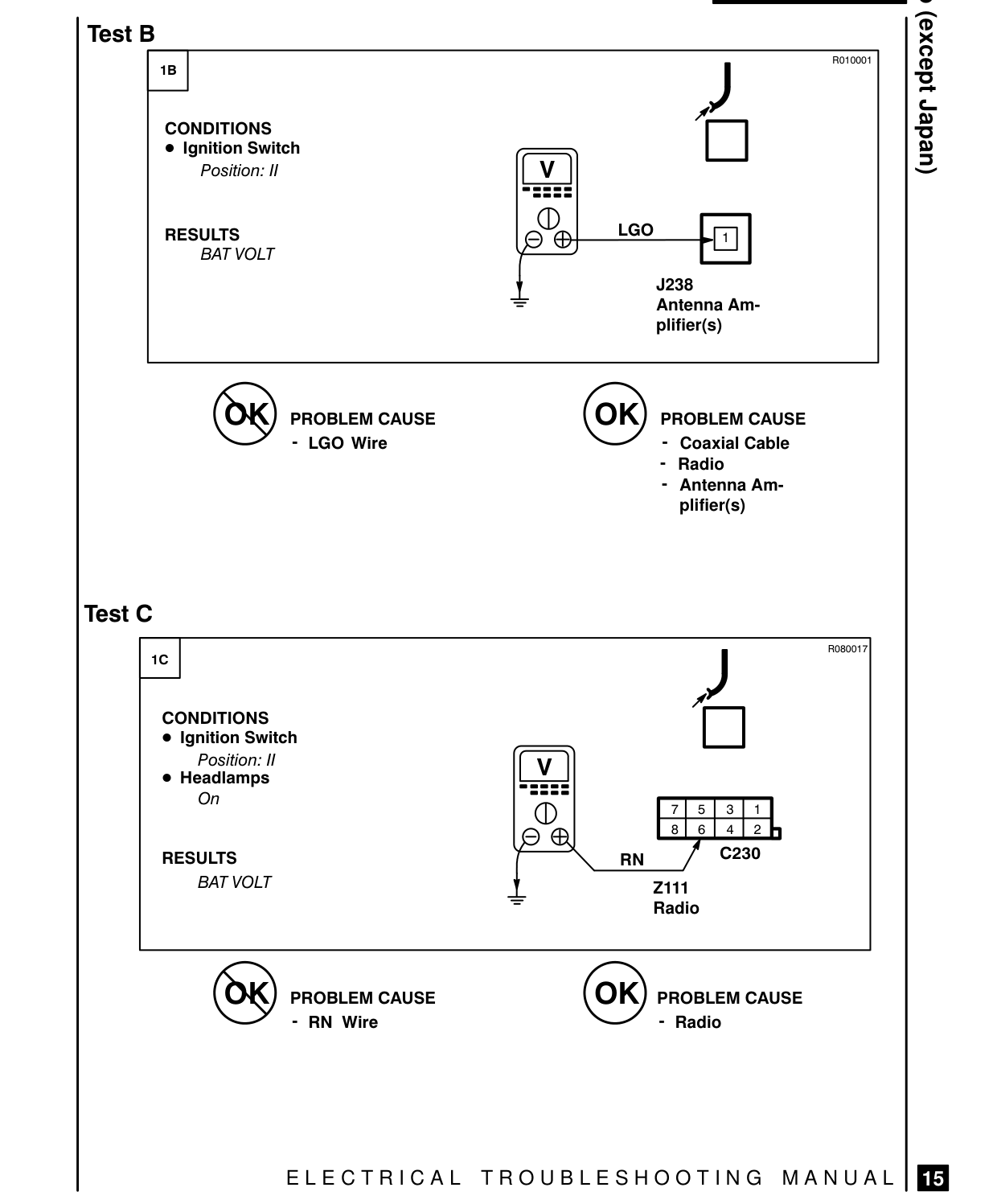

Test B

CONDITIONS ® Ignition Switch Position: Il

RESULTS BAT VOLT

(59) PROBLEM CAUSE - LGO Wire

Test C

CONDITIONS e Ignition Switch Position: Il ® Headlamps on RESULTS BAT VOLT

(59) PROBLEM CAUSE - RN Wire

ELECTRICAL TROUBLESHOOTING MANUAL

lo]

R010001 oD Eo]

DO LGO

J238 Antenna Amplifier(s)

PROBLEM CAUSE Coaxial Cable Radio Antenna Amplifier(s)

R080017

Cel olalzt RN C230 Z111 Radio

PROBLEM CAUSE Radio
