Radio (EXCEPT Japan)Radio (except Japan) – fault diagnosis

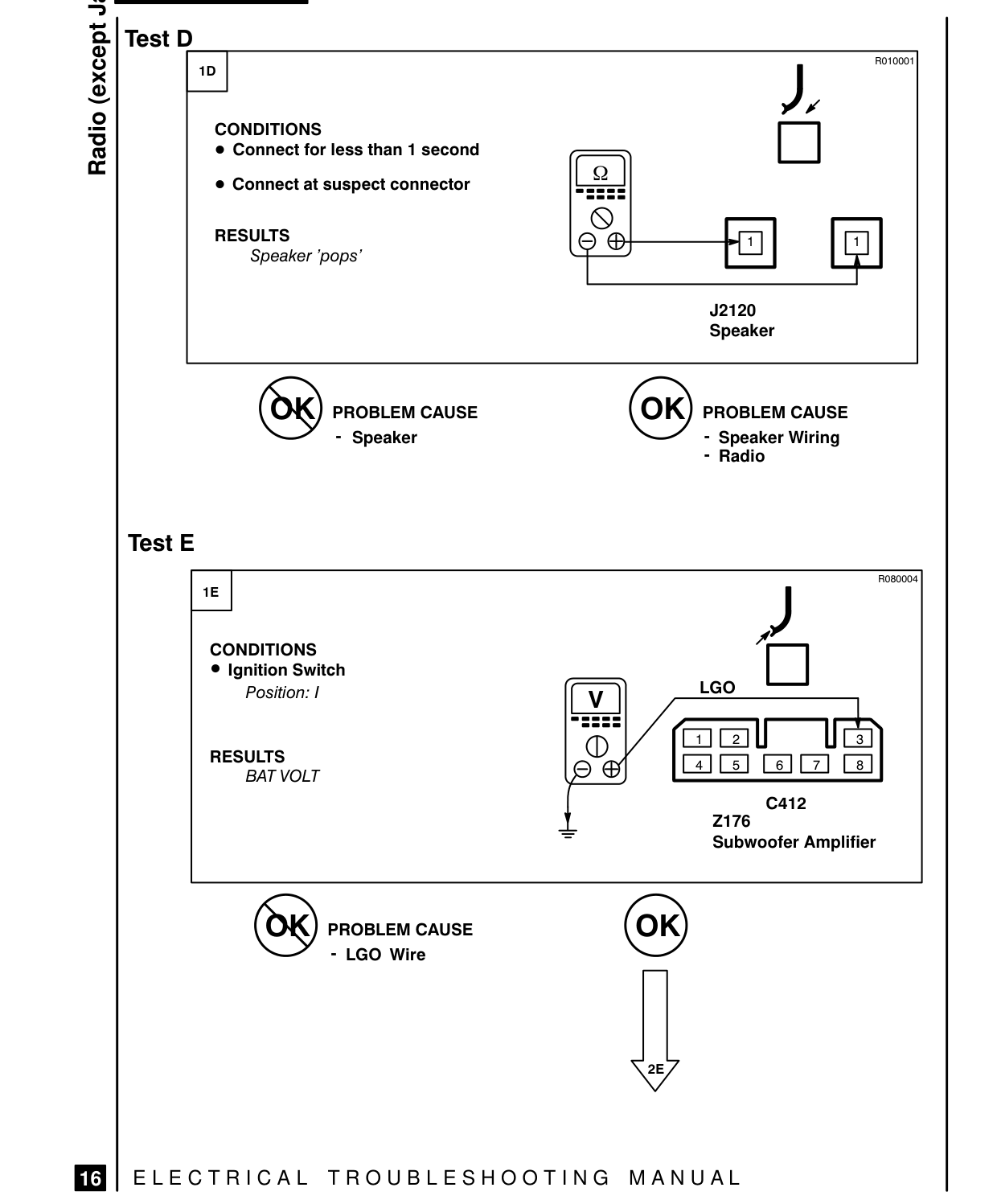

RADIO (EXCEPT JAPAN) – FAULT DIAGNOSIS

pd oy Test D 10 |

CONDITIONS e Connect for less than 1 second

e Connect at suspect connector

RESULTS Speaker ‘pops’

(59) PROBLEM CAUSE - Speaker

Test E

ie | 1E CONDITIONS ® Ignition Switch Position: |

RESULTS BAT VOLT

(59) PROBLEM CAUSE - LGO Wire

EB | ELECTRICAL TROUBLESHOOTING MANUAL

R010001

J2120 Speaker

PROBLEM CAUSE - Speaker Wiring - Radio

RO80004

LGO

[el 10s] Cell7] Cel

C412 2176 Subwoofer Amplifier
