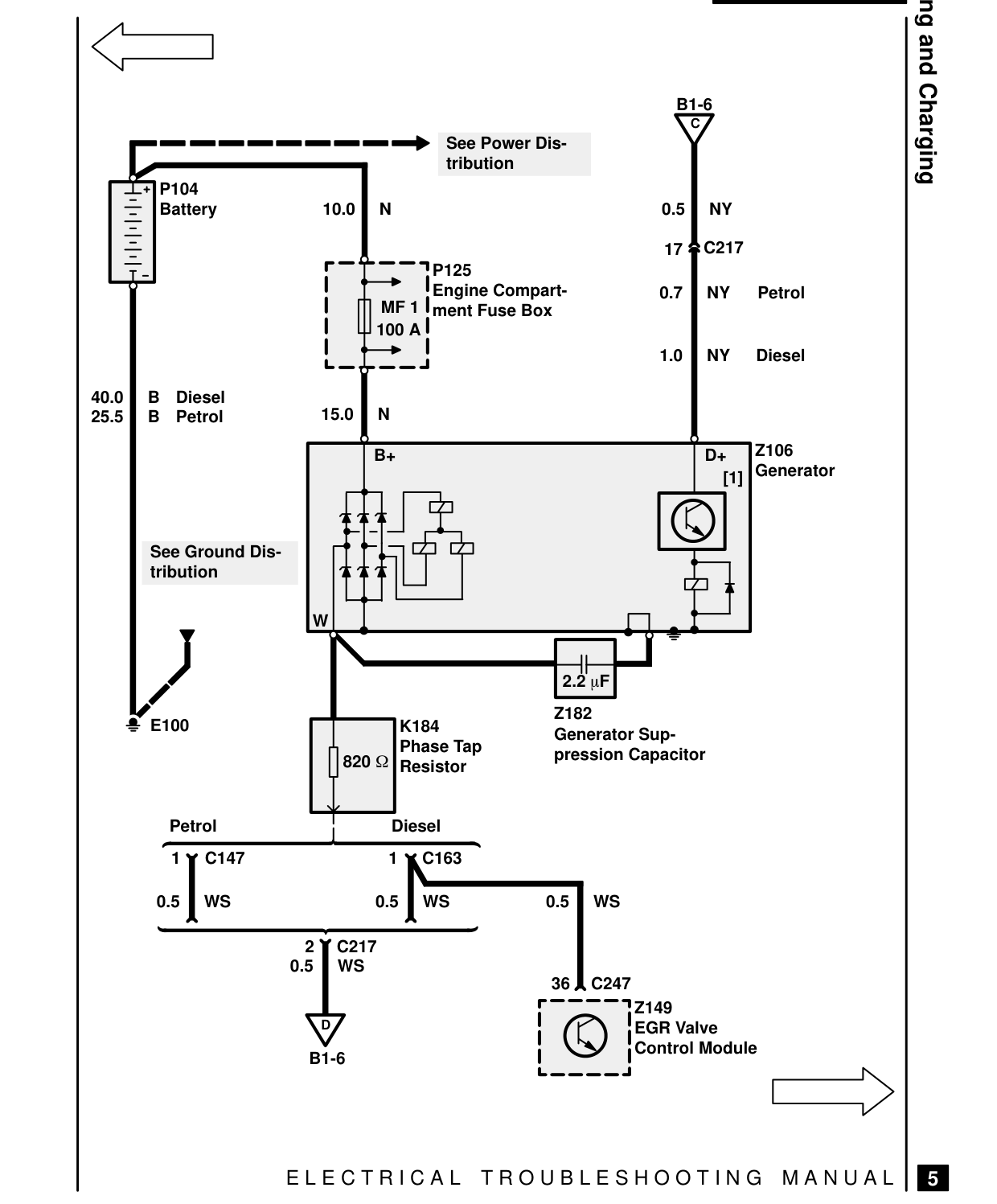

Starting and charging – circuit diagram

STARTING AND CHARGING – CIRCUIT DIAGRAM

See Power Dis- tribution P104 10.0 N Battery

P125 Engine Compart- MF 1 ment Fuse Box 100 A

40.0 B Diesel 15.0 N 25.5 B Petrol

B+

See Ground Dis- tribution

W

E100 K184 Phase Tap

820

Resistor

Petrol Diesel 1 C147 1 C163

0.5 WS 0.5 WS

2 C217 0.5 WS

D

B1-6

E L E C T R I C A L

Starting and Charging B1-6 C

0.5 NY

C217 17

Petrol 0.7 NY

Diesel 1.0 NY

Z106 D+ Generator [1]

2.2  F

Z182 Generator Sup- pression Capacitor

0.5 WS

36 C247 Z149 EGR Valve Control Module

T R O U B L E S H O O T I N G M A N U A L

5
