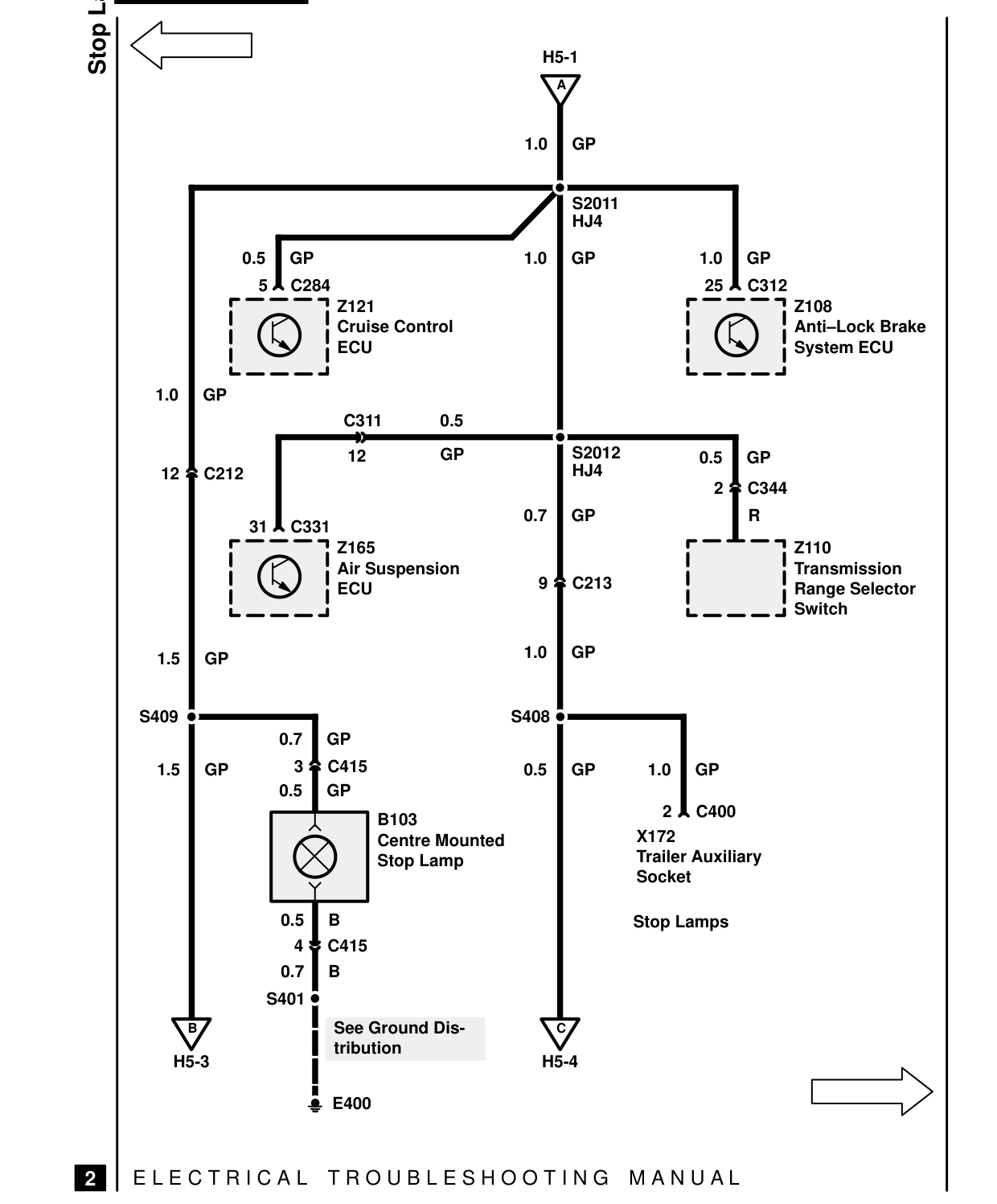

Stop lamps – circuit diagram

STOP LAMPS – CIRCUIT DIAGRAM

Stop Lamps

0.5 GP 5 C284 Z121 Cruise Control ECU

1.0 GP C311 0.5

GP 12 12 C212

31 C331 Z165 Air Suspension ECU

1.5 GP

S409 0.7 GP 3 C415 1.5 GP 0.5 GP B103 Centre Mounted Stop Lamp

0.5 B 4 C415 0.7 B S401 See Ground Dis- B tribution H5-3

E400

E L E C T R I C A L T R O U B L E S H O O T I N G

2

H5-1 A

1.0 GP

S2011 HJ4

1.0 GP 1.0 GP 25 C312 Z108 Anti-Lock Brake System ECU

S2012 0.5 GP HJ4 2 C344 R 0.7 GP Z110 Transmission 9 C213 Range Selector Switch

1.0 GP

S408

0.5 GP 1.0 GP

2 C400 X172 Trailer Auxiliary Socket

Stop Lamps

C

H5-4

M A N U A L
