Range Rover Classic
47
PROPELLER SHAFTS
2
REPAIR
18. Press each cup into its respective yoke up to
lower land of circlip grooves. Damage may be
caused to cups and seals if cups pass this point.
19. Fit circlips and check no end float exists.

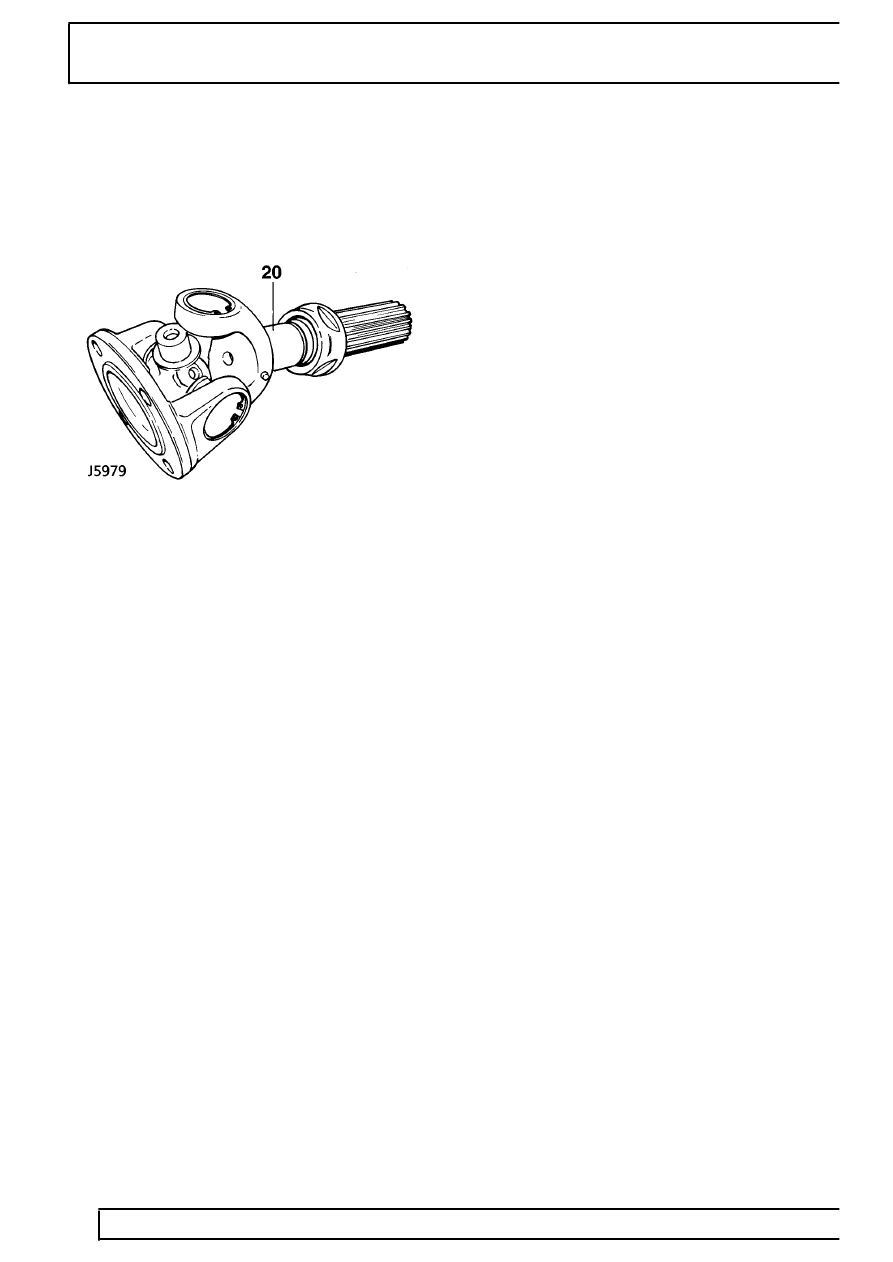

20. Engage spider in yokes of sliding member. Fit
bearing cups and circlips as described in
instructions 14 to 19.
21. Fit grease nipples to spider and sliding member.
22. Apply instructions 14 to 19 to opposite end of
propeller shaft.
23. Fit grease nipple and lubricate.
Refit
24. Fit propeller shafts to vehicle and tighten nuts to
47Nm
Refit FRONT propeller shaft so sliding joint end
of shaft is fitted to transfer gearbox.
