Range Rover Classic
51
REAR AXLE AND FINAL DRIVE
2
REPAIR

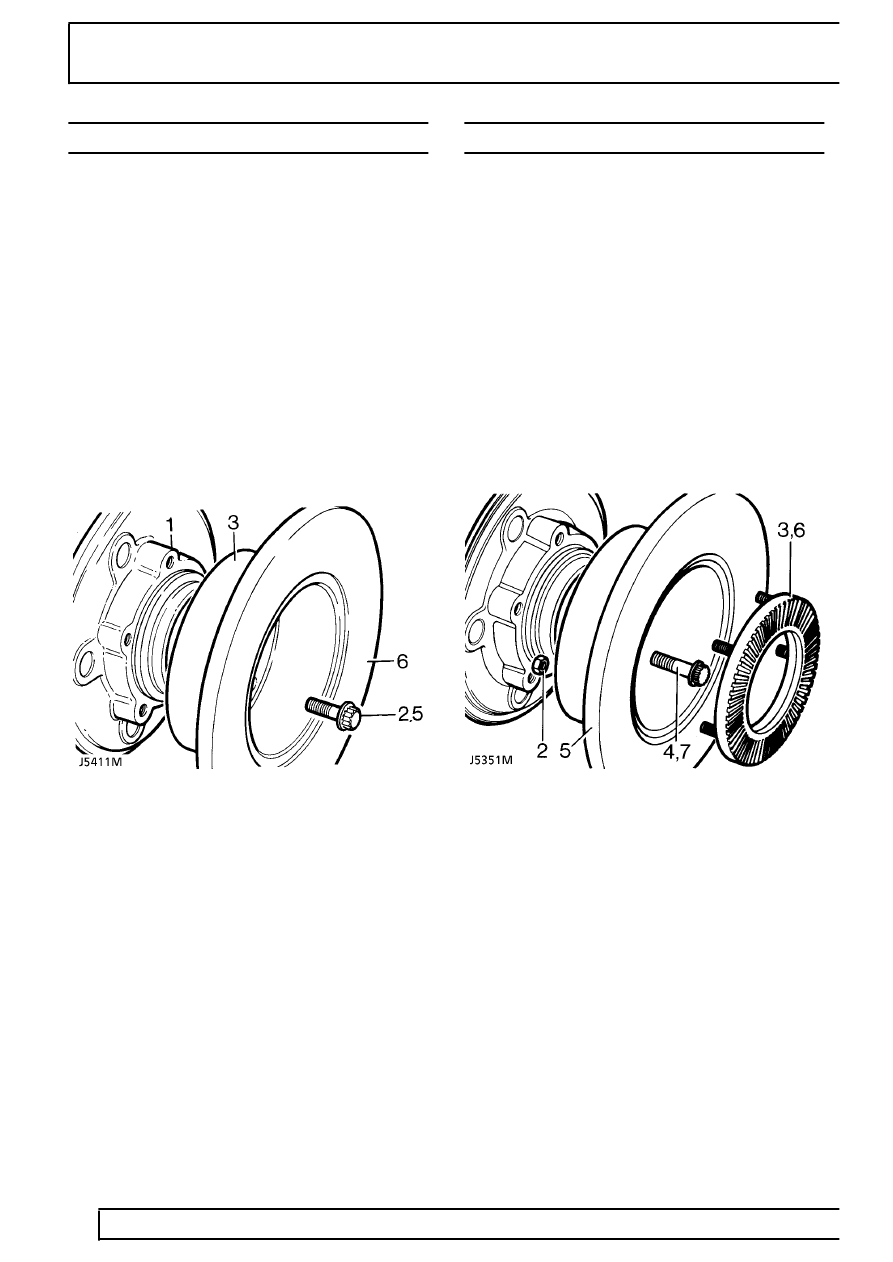

REAR BRAKE DISC NON ABS
Service repair no - 70.10.11.
Remove
1. Remove rear hub assembly.
See Rear Hub
Assembly
2. Remove disc bolts.
3. Remove disc from rear hub.
Refit
4. Fit disc to rear hub.
5. Fit disc bolts. Tighten to
73 Nm.
6. Check total disc run out, this must not exceed
0,15 mm. If necessary reposition disc.
7. Fit rear hub assembly.
See Rear Hub
Assembly
Disc reclamation
8. Check disc thickness. This dimension may be
reduced to minimum thickness of 12 mm.
Machine equal amounts off each face.
REAR BRAKE DISCS ABS
Service repair no - 70.11.11.
Remove
1. Remove rear hub assembly.
See Rear Hub
Assembly
2. Remove five nyloc nuts.
3. Remove sensor ring.
4. Remove five hub to disc retaining bolts.
5. Remove disc from hub.
Refit
6. Fit disc onto hub.
7. Apply loctite 270 and fit hub to disc retaining
bolts. Tighten to
73 Nm.
8. Using new nyloc nuts fit sensor ring.
9. Check total disc run out, this must not exceed
0,15 mm. If necessary reposition disc.
10. Fit hub assembly.
See Rear Hub Assembly
Disc reclamation
11. Check disc thickness. This dimension may be
reduced to a minimum thickness of 12 mm.
Machine equal amounts off each face.
