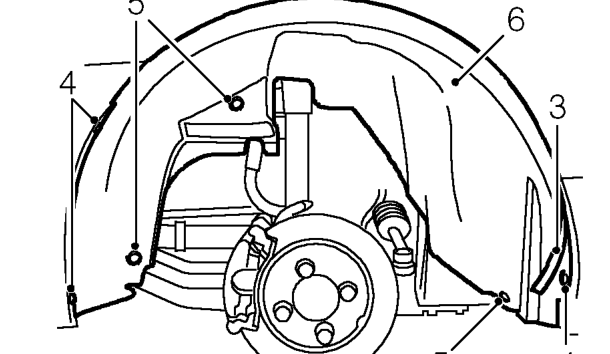

Front wheel arch liner

FRONT WHEEL ARCH LINER

Service repair no - 76.10.48

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

3. Release wheel arch flange seal from rear lower edge of wing panel.
4. Remove 3 screws securing wheel arch liner.
5. Remove 3 scrivet screws securing wheel arch liner, remove scrivets.
6. Remove wheel arch liner.

Refit

1. Fit and align wheel arch liner.
2. Fit scrivet fasteners securing wheel arch liner.
3. Fit and tighten screws securing wheel arch liner.
4. Secure wheel arch flange seal.
5. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
6. Remove stand(s) and lower vehicle.

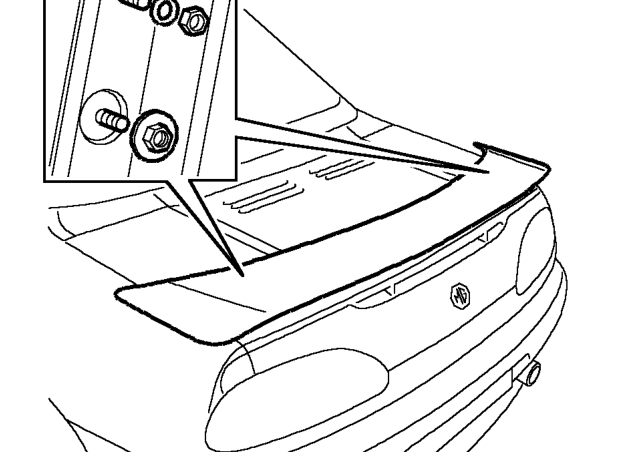

SPOILER - BOOT - MGF TROPHY

Service repair no - 76.10.91

Remove

1. Noting their fitted position, remove 4 nuts and washers securing rear spoiler to boot lid.
2. Release spoiler from boot lid and remove spoiler.

Refit

1. Clean spoiler and boot lid mating faces.
2. Ensure boot lid is at room temperature, fit new double sided pads.
3. Position spoiler and align to boot lid.
4. Ensuring correct orientation, fit nuts and washer and tighten to 5 Nm.
