BONNET RELEASE CABLE

Service repair no - 76.16.29

Remove

  1. Remove headlamp assembly. See ELECTRICAL, Repairs.

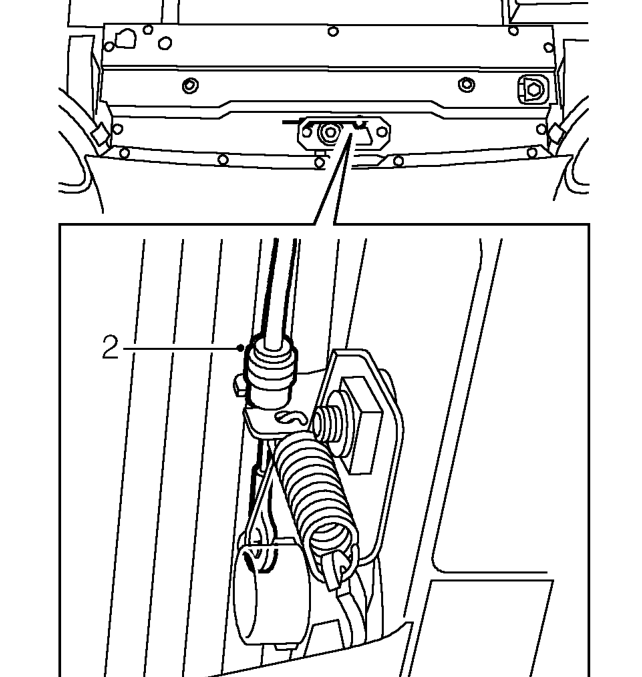

Bonnet release cable – Remove headlamp assembly. See ELECTRICAL, Repairs.
  1. Release cable from bonnet lock plate.

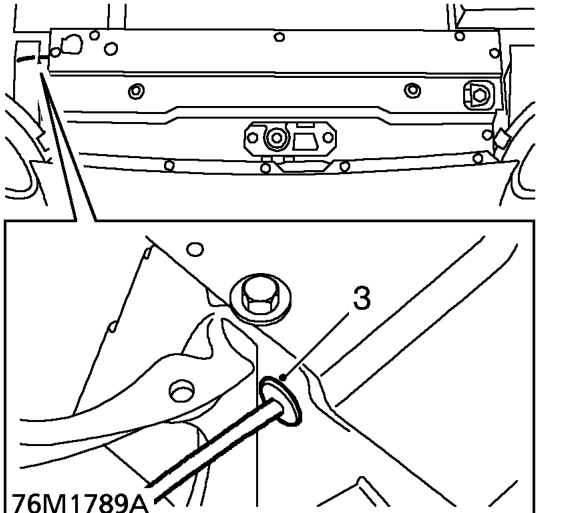

Bonnet release cable – Release cable from bonnet lock plate.
  1. Release grommet from body
  2. Feed bonnet release cable through hole.

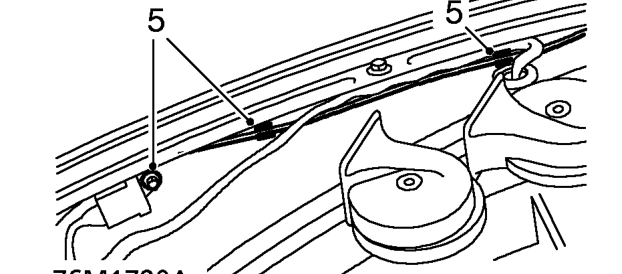

Bonnet release cable – Feed bonnet release cable through hole.
  1. Loosen bolt securing earth header to inner wing and release cable from 2 inner wing clips.
  2. Remove engine compartment access panel. See this section.
  3. Remove hoodwell trim. See Interior trim components.
