Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)17 · Body
17 · Body & interior

Front bumper valance - MG f trophy

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Exterior fittings › Front bumper valance - MG f trophy
BodyFront bumper valance - MG f trophy · page 1 of 2

Refit

  1. Fit bumper valance.
  2. Fit bolts securing bumper valance to bumper armature and tighten to 25 Nm.
  3. Fit and tighten screws securing bumper valance to bonnet locking platform.
  4. Fit and tighten screws securing each end of bumper valance to wheel arch liners.
  5. Fit and tighten screws securing each end of bumper valance to wings.
  6. Fit both direction indicators. See ELECTRICAL, Repairs.
  7. Remove stand(s) and lower vehicle.

FRONT BUMPER VALANCE - MG F TROPHY

Service repair no - 76.22.72

Remove

  1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove front road wheels.
  2. Remove both front wheel arch liners. See this section.
  3. Remove both front direction indicator lamps. See ELECTRICAL, Repairs.

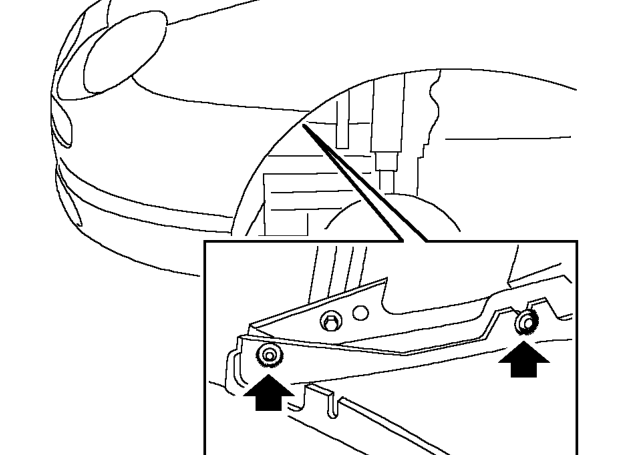

Front bumper valance - mg f trophy – Remove both front direction indicator lamps. See ELECTRICAL, Repairs.
  1. Remove 4 screws securing each end of bumper valance to front wings.
