Front bumper valance - MG f trophy (page 2 of 2)

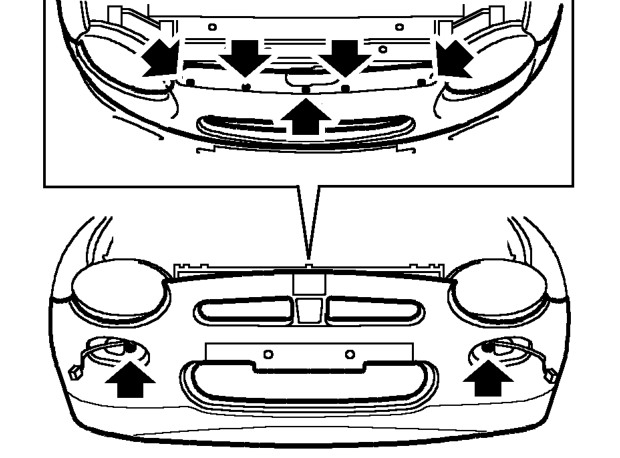

6. Remove 5 screws securing bumper valance to bonnet locking panel.
7. Working through direction indicator housings, remove 2 bolts securing bumper valance to bumper armature.
8. Remove front bumper valance.

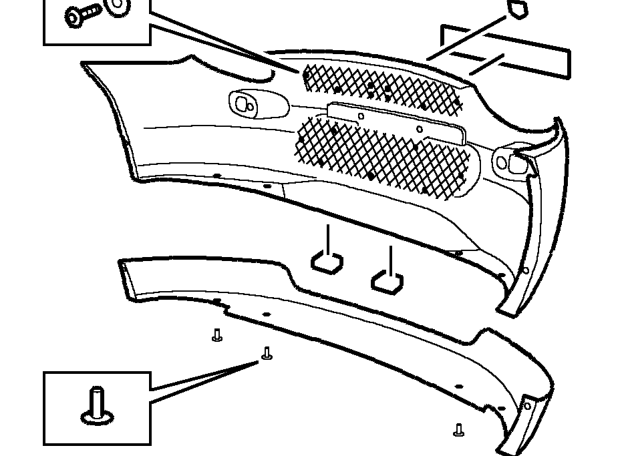

9. Remove 15 screws securing bumper valance grilles and remove grilles.
10. Remove bumper valance badge.
11. Remove 4 scrivets securing bib spoiler to bumper valance.
12. Carefully Release bib spoiler from bumper valance and remove bib spoiler.
13. Remove 2 foam blocks.
14. Remove front number plate.

Refit

1. Clean mating faces of bib spoiler and bumper valance with spirit wipe or hot air gun.
2. Ensuring panels are at room temperature, fit new double sided tape to bib spoiler, ensure foam blocks are fitted to bumper valance.
3. Position bib spoiler to bumper valance and secure with scrivets.
4. Clean bumper badge and mating face, fit badge.
5. Position bumper grilles, fit and tighten screws.
6. Clean number plate and mating face.
7. Fit number plate.
8. Fit front bumper valance.
9. Fit bolts securing bumper valance to bumper armature and tighten to 25 Nm.
10. Fit and tighten screws securing bumper valance to bonnet locking panel.
11. Fit and tighten screws securing bumper valance to front wings.
12. Fit both direction indicator lamps. See ELECTRICAL, Repairs.
13. Fit both front wheel arch liners. See this section.
14. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
15. Remove stands and lower vehicle.
