UNDERBONNET CLOSING PANEL

Service repair no - 76.10.94

Remove

  1. Open bonnet.
Underbonnet closing panel – Open bonnet.
  1. Remove 2 fixings securing closing panel to spare wheel well.
  2. Remove 2 fixings securing closing panel to scuttle.
  3. Remove fixing securing closing panel to air intake plenum.
  4. Remove closing panel.

Refit

  1. Fit closing panel to body studs and secure fixings.
  2. Close bonnet.

ENGINE COMPARTMENT ACCESS PANEL

Service repair no - 76.11.05/99

Remove

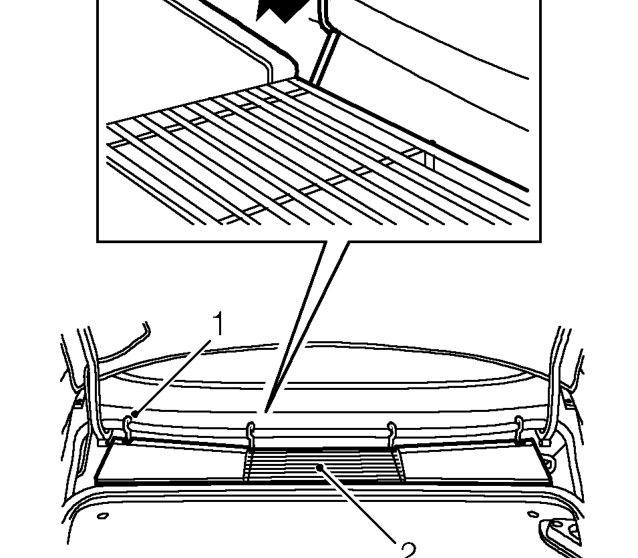

Engine compartment access panel – Service repair no - 76.11.05/99
  1. Release 4 retaining clips along front edge of closing panel by pulling each clip away from the seal and lifting upwards.
  2. Remove panel. Do not carry out further dismantling if component is removed for access only.
  3. Remove 6 screws securing LH plate to panel, remove plate.
  4. Remove 3 screws securing RH plate to panel, remove plate.

Rebuild

  1. Fit RH plate to panel and secure with screws.
  2. Fit LH plate to panel and secure with screws.

Refit

  1. Fit closing panel and secure.
