BodySide air vent

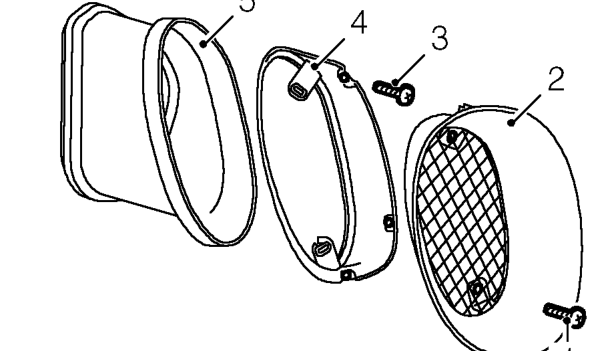

SIDE AIR VENT

Service repair no - 76.55.19

Remove

1. Remove 2 screws securing outer grille.
2. Remove outer grille.
3. Remove 3 screws securing inner retaining plate.
4. Remove inner retaining plate.
5. Remove air intake pipe.

Refit

1. Locate air intake pipe to body.
2. Fit inner retaining plate and tighten screws.
3. Fit outer grille and tighten screws.
