PANEL - FRONT UNDERBELLY - CENTRE

Service repair no - 76.10.50

Remove

  1. Raise vehicle on a 2 post ramp.

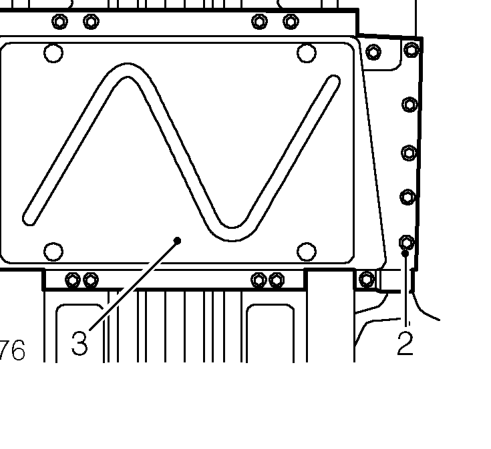

Panel - front underbelly - centre – Raise vehicle on a 2 post ramp.
  1. Remove 22 bolts securing underbelly panel to floorpan.
  2. Remove underbelly panel.

Refit

  1. Position underbelly panel to floorpan and tighten bolts to 22 Nm.
  2. Lower vehicle.

BONNET LOCKING PLATFORM - R/R ACCESS

Service repair no - 76.16.22/99

Remove

  1. Remove front bumper valance. See this section.

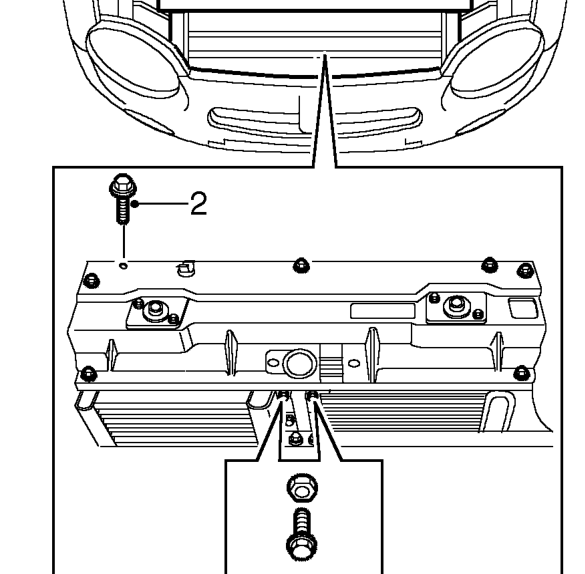

Bonnet locking platform - r/r access – Remove front bumper valance. See this section.
  1. Remove 7 bolts and 2 nuts and bolts securing bonnet locking platform. Release bonnet locking platform from 4 location pegs.
  2. Disconnect bonnet cable from bonnet catch and remove bonnet locking platform.

Refit

  1. Position bonnet locking platform and connect bonnet cable to bonnet catch.
  2. Fit bonnet locking platform and engage platform in location pegs. Fit nuts and bolts and tighten to 10 Nm.
  3. Fit front bumper valance. See this section.
