Private lock - boot lid

Refit

1. Feed cable through scuttle and under carpet insulation.
2. Position grommet to cable timing mark and engage grommet to scuttle.
3. Position cable to front inner wing and through hole in body.
4. Engage cable and abutment to bonnet lock plate.
5. Engage grommet to body.
6. Fit headlamp assembly. See ELECTRICAL, Repairs.
7. Engage cable to inner wing clip and tighten earth header bolt to 9 Nm.
8. Feed cable through floorpan crossmember and engage to clips.
9. Position carpet and secure with studs and velcro.
10. Position carpet beneath door flip seal.
11. Fit grommet to cable and position to timing mark.
12. Position cable through hole in hoodwell panel and luggage compartment bulkhead.
13. Engage cable and abutment to bonnet release lever.
14. Position lever to bulkhead and tighten bolts to 9 Nm.
15. Position carpet beneath luggage compartment flip seal.
16. Engage grommet and cable clip.
17. Fit hoodwell trim. See Interior trim components.
18. Fit engine compartment access panel. See this section.
19. Fit front bumper valance. See this section.

PRIVATE LOCK - BOOT LID

Service repair no - 76.19.10

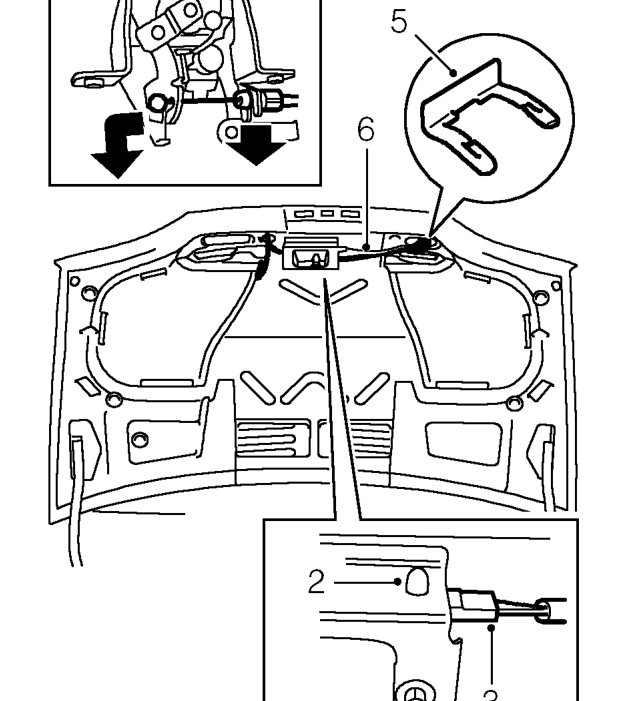

Remove

1. Open boot lid.

2. Release multiplug from boot lid latch, bracket.
3. Disconnect multiplug.
4. Disconnect release cable from boot lid latch.
5. Remove clip securing lock to boot lid.
6. Remove lock assembly from boot lid.

Refit

1. Position lock to boot lid and secure with clip.
2. Connect release cable to boot lid latch.
3. Connect multiplug.
4. Secure multiplug to boot lid latch, bracket.
