MG MGF Factory Workshop Manual (1995-2000)17 · Body
17 · Body & interior

Cushion cover

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Interior trim components › Cushion cover
BodyCushion cover

CUSHION COVER

Service repair no - 78.30.01

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the SRS system safe.See RESTRAINT SYSTEMS, Precautions.
  2. Remove seat squab assembly. See this section.

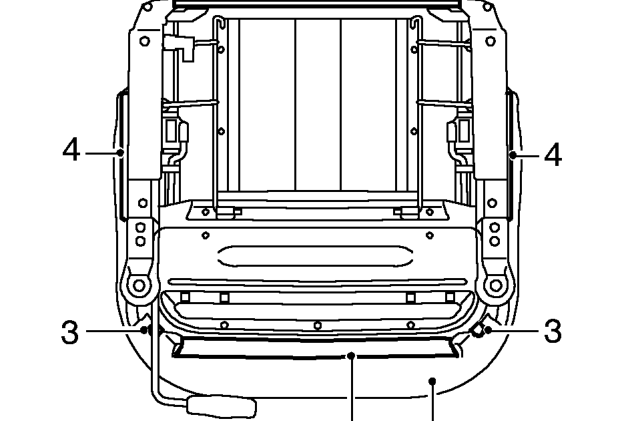

Cushion cover – Remove seat squab assembly. See this section.
  1. Remove 2 spring clips securing front lower edge of cover to frame.
  2. Release cushion cover retainers from frame.
  3. Remove cover and pad assembly from frame.

Do not carry out further dismantling if component is removed for access only.

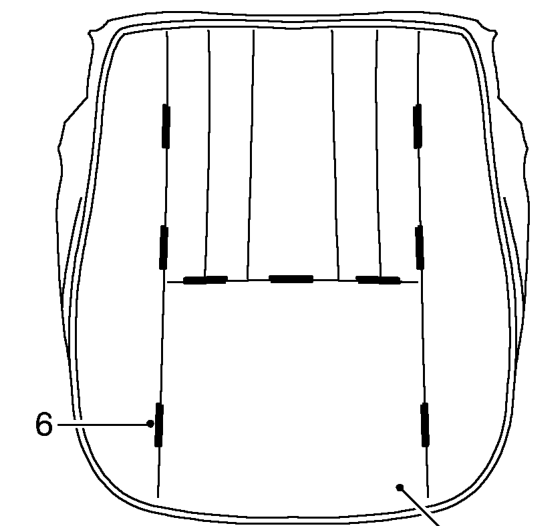

Cushion cover – Do not carry out further dismantling if component is removed for access only.
  1. Remove 9 Hog rings securing cushion cover to pad.
  2. Remove cushion cover from pad.

Rebuild

  1. Fit cushion cover to pad.
  2. Secure cushion cover to pad with Hog rings.

Refit

  1. Position cover and pad assembly to frame.
  2. Secure cushion retainers to frame.
  3. Fold front lower edges of cover under frame and secure with spring clips.
  4. Fit seat squab assembly. See this section.
