CENTRE CONSOLE PANEL - UP TO 2000MY

Service repair no - 76.25.23

Remove

  1. Disconnect battery earth lead.
  2. Remove radio. See ELECTRICAL, Repairs.
Centre console panel - up to 2000my – Remove radio. See ELECTRICAL, Repairs.

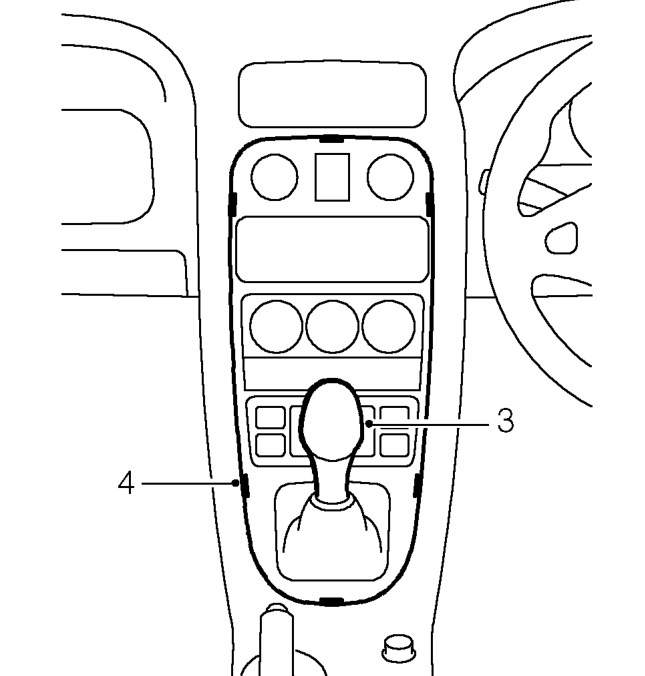

  1. Remove gear knob.
  2. Release 6 clips securing console to fascia.
Centre console panel - up to 2000my – Release 6 clips securing console to fascia.

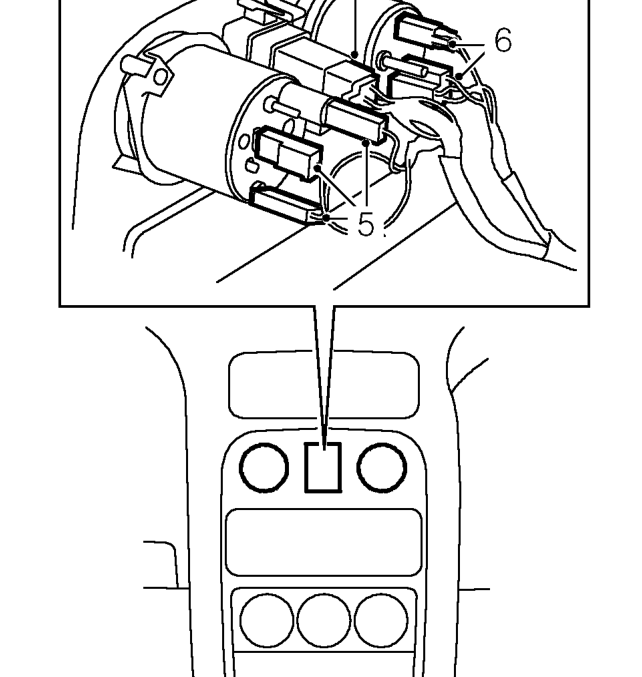

  1. Release 3 Lucars from clock.
  2. Release multiplug and bulb holder from oil temperature gauge.
  3. Release hazard switch multiplug.
