MG MGF Factory Workshop Manual (1995-2000)17 · Body
17 · Body & interior

Console closing panel

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Interior trim components › Console closing panel
BodyConsole closing panel

CONSOLE CLOSING PANEL

Service repair no - 76.25.31

Remove

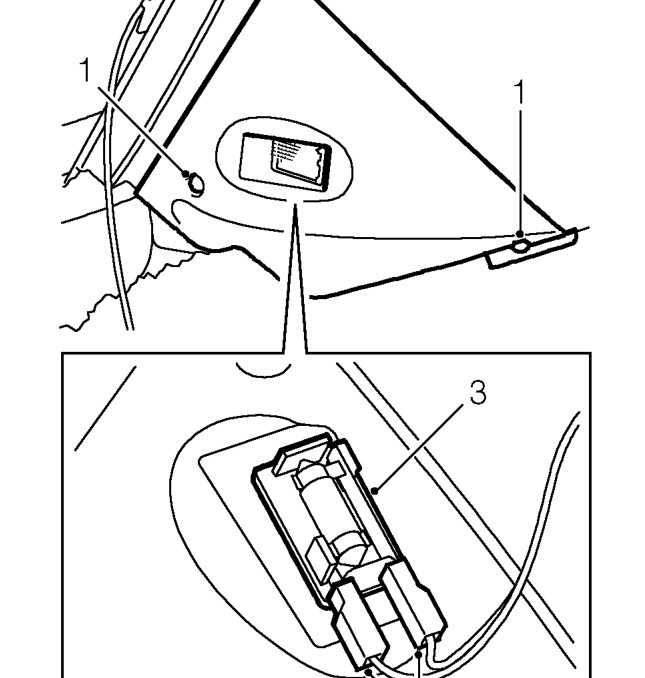

Console closing panel – Service repair no - 76.25.31
  1. Remove 2 screws securing panel to console.
  2. Release panel and disconnect 2 Lucars from lamp.
  3. Remove lamp from panel.

Refit

  1. Fit lamp to panel and connect Lucars.
  2. Position panel and secure with screws.

FASCIA PANEL

Service repair no - 76.46.23

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make SRS system safe.See RESTRAINT SYSTEMS, Precautions.
  2. Remove front console. See this section.
  3. Remove steering column switch pack. See ELECTRICAL, Repairs.
  4. Remove instrument pack. See INSTRUMENTS, Repairs.
  5. Remove glovebox. See this section.
Fascia panel – Remove glovebox. See this section.

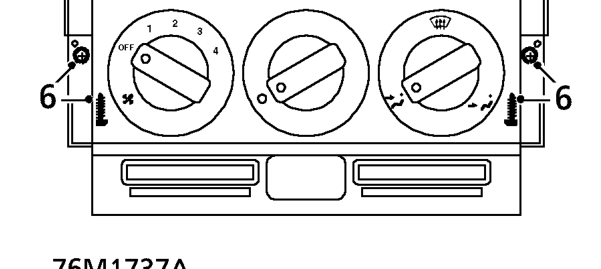

  1. Remove 4 screws securing heater controls to fascia and position aside.
Fascia panel – Remove 4 screws securing heater controls to fascia and position aside.

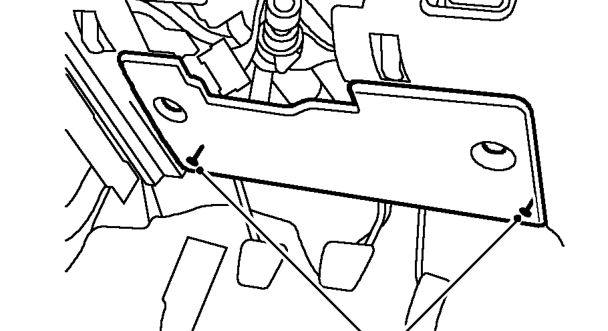

  1. Loosen 2 screws securing fuse box cover to fascia and remove cover.
  2. Release both screen heater ducts from fascia and position aside.
