MG MGF Factory Workshop Manual (1995-2000)17 · Body
17 · Body & interior

Centre console panel - 2000my on

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Interior trim components › Centre console panel - 2000my on
BodyCentre console panel - 2000my on · page 1 of 2

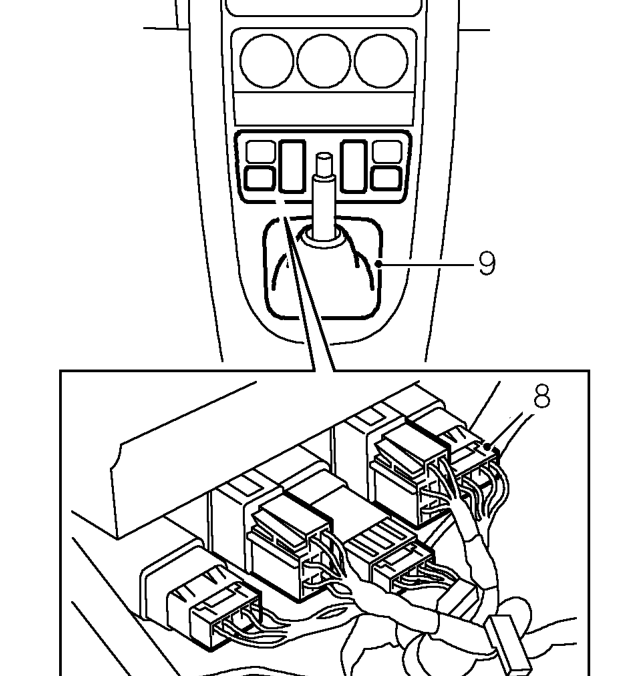

Diagram
  1. Release 6 multiplugs from switches.
  2. Release gaiter from gear lever and remove centre console.

Refit

  1. Position console and engage gaiter to gear lever.
  2. Connect multiplugs, Lucars and bulb holder.
  3. Secure console clips to fascia.
  4. Fit gear knob.
  5. Fit radio. See ELECTRICAL, Repairs.
  6. Connect battery earth lead.

CENTRE CONSOLE PANEL - 2000MY ON

Service repair no - 76.25.23

Remove

  1. Disconnect battery earth lead.
  2. Remove radio. See ELECTRICAL, Repairs.
  3. Remove gear lever gaiter. See this section.

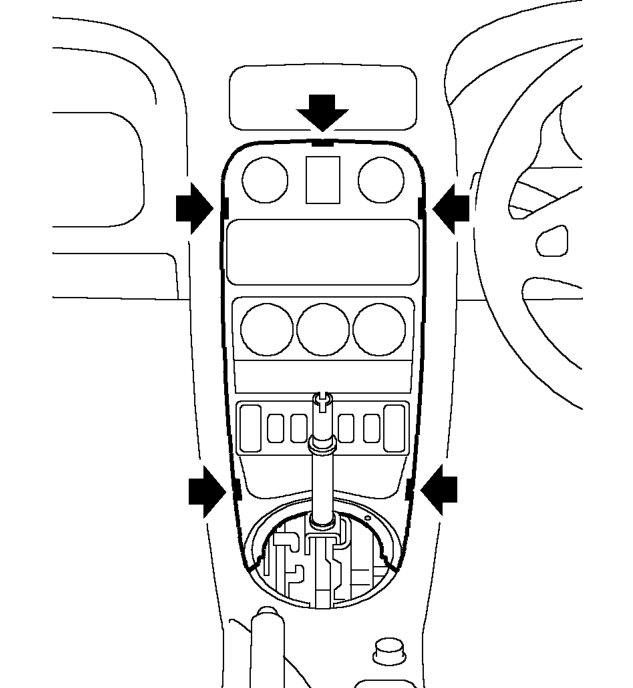

Centre console panel - 2000my on – Remove gear lever gaiter. See this section.
  1. Release 5 clips securing console to fascia.
