17 · Body & interior

Centre console panel - 2000my on (page 2 of 2)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Interior trim components
BodyCentre console panel - 2000my on · page 2 of 2

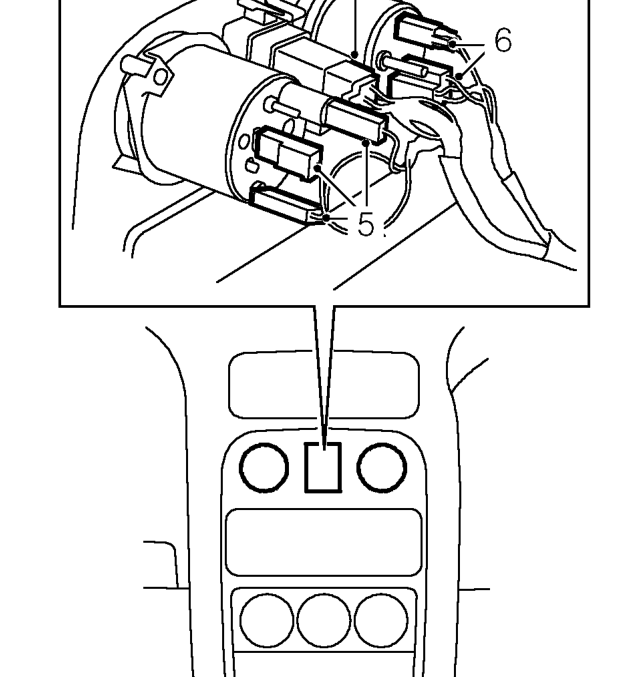

Diagram
  1. Release 3 Lucars from clock.
  2. Release multiplug and bulb holder from oil temperature gauge.

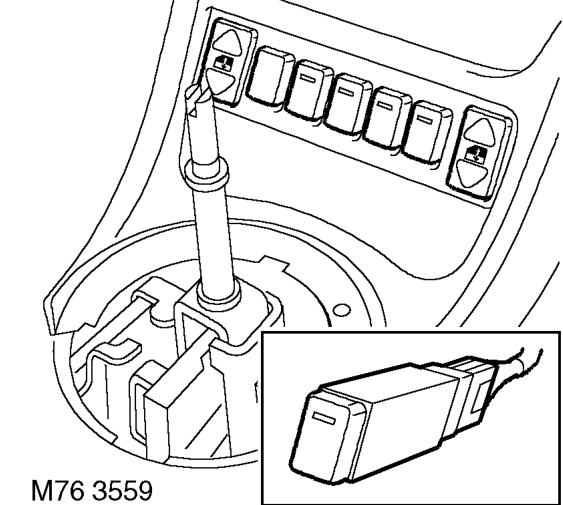

  3. Release hazard switch multiplug.
Release hazard switch multiplug.
  1. Release multiplugs from switches.
  2. Remove centre console panel.

Refit

  1. Position console and connect multiplugs, Lucars and bulb holder.
  2. Secure console clips to fascia.
  3. Fit gear lever gaiter. See this section.
  4. Fit radio. See ELECTRICAL, Repairs.
  5. Connect battery earth lead.
