Rear console

Refit

1. Position front console, connect cigar lighter multiplug and position volumetric sensor cable.
2. Position console and secure with screws.
3. Fit handbrake gaiter and secure with band.
4. Engage gaiter to console.
5. Adjust handbrake. See BRAKES, Adjustments.
6. Fit console closing panels. See this section.
7. Fit rear console. See this section.

CAUTION: Ensure that pre-tensioner flylead is correctly clipped to seat base before fitting seat, as shown in seat refit. See this section.

8. Fit centre console panel. See this section.
9. Connect both battery terminals, earth lead last.

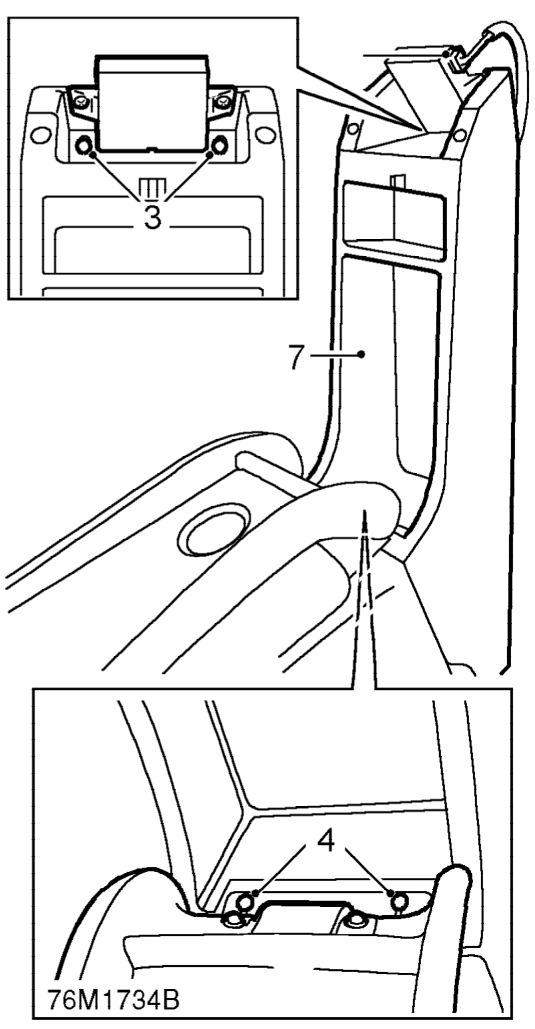

REAR CONSOLE

Service repair no - 76.25.04

Remove

1. Remove rear bulkhead finisher. See this section.

2. Disconnect multiplug from volumetric sensor.
3. Remove 2 screws securing rear console to rear bulkhead.
4. Open rear console lid and remove 2 screws securing console lid bracket to rear console.
5. Open front console lid and remove storage bin from front console.
