MG MGF Factory Workshop Manual (1995-2000)17 · Body
17 · Body & interior

Front console

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Interior trim components › Front console
BodyFront console

FRONT CONSOLE

Service repair no - 76.25.01

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make SRS system safe. See RESTRAINT SYSTEMS, Precautions.
  2. Remove centre console panel. See this section.

CAUTION: Ensure pre-tensioner multiplug is disconnected before seat is removed.

  1. Remove rear console. See this section.
  2. Remove both console closing panels. See this section.

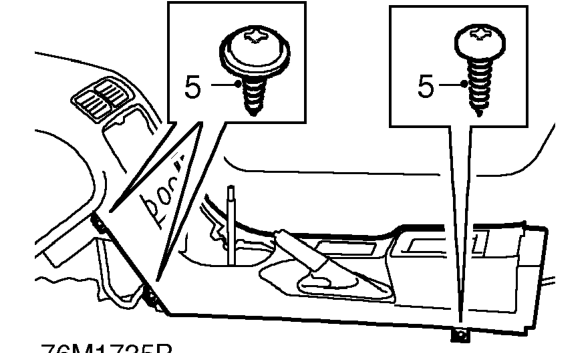

Front console – Remove both console closing panels. See this section.
  1. Remove 6 screws securing console to tunnel.

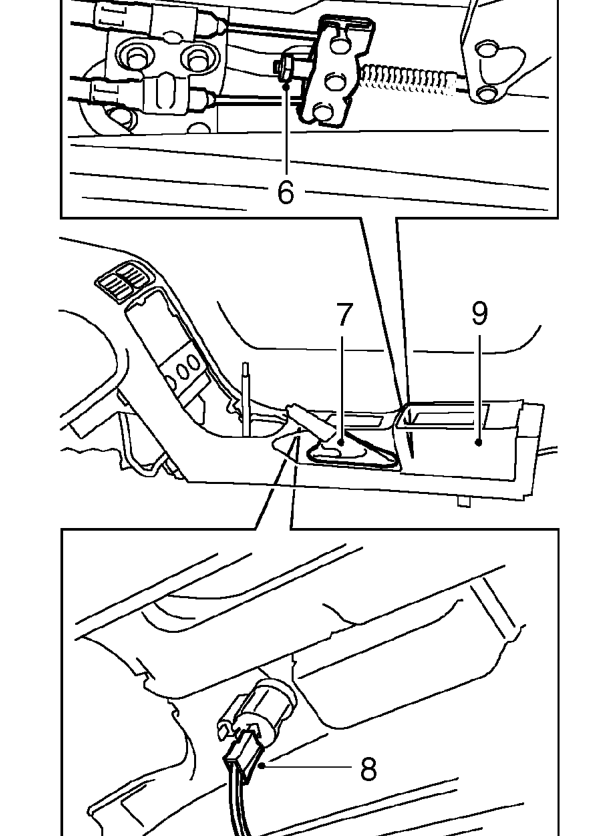

Front console – Remove 6 screws securing console to tunnel.
  1. Loosen handbrake adjustment and position hand brake lever in ON position.
  2. Release handbrake gaiter from console and remove gaiter from handbrake.
  3. Release console and disconnect multiplug from cigar lighter.
  4. Release volumetric sensor cable and remove console.
