Gear lever gaiter - up to 2000my

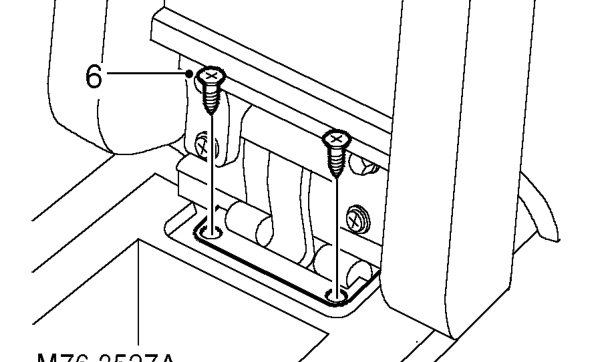

6. Remove 2 screws securing console lid bracket to front console and remove console lid assembly.
7. Remove rear console.
8. Remove 2 screws securing volumetric sensor to rear console and remove sensor.

Refit

1. Fit sensor to console and secure with screws.
2. Fit rear console to bulkhead and secure with 2 upper screws. Ensure correct position of cable.
3. Fit console lid assembly and secure with screws.
4. Fit front console storage bin.
5. Connect multiplug to sensor.
6. Fit rear bulkhead finisher. See this section.

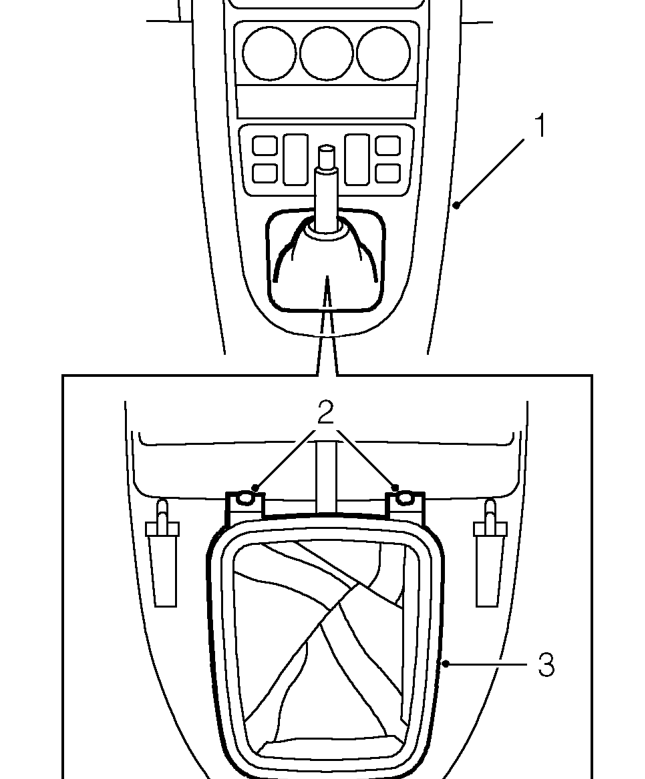

GEAR LEVER GAITER - UP TO 2000MY

Service repair no - 76.25.06

Remove

1. Remove centre console panel. See this section.

2. Remove 2 screws securing gaiter retaining bracket to gaiter.
3. Remove bracket and gaiter.

Refit

1. Position gaiter.
2. Fit bracket and secure with screws.
3. Fit centre console panel. See this section.
