EXHAUST MOUNTINGS

Service repair no - 30.20.06

Remove

  1. Remove silencer heat shield. See this section.

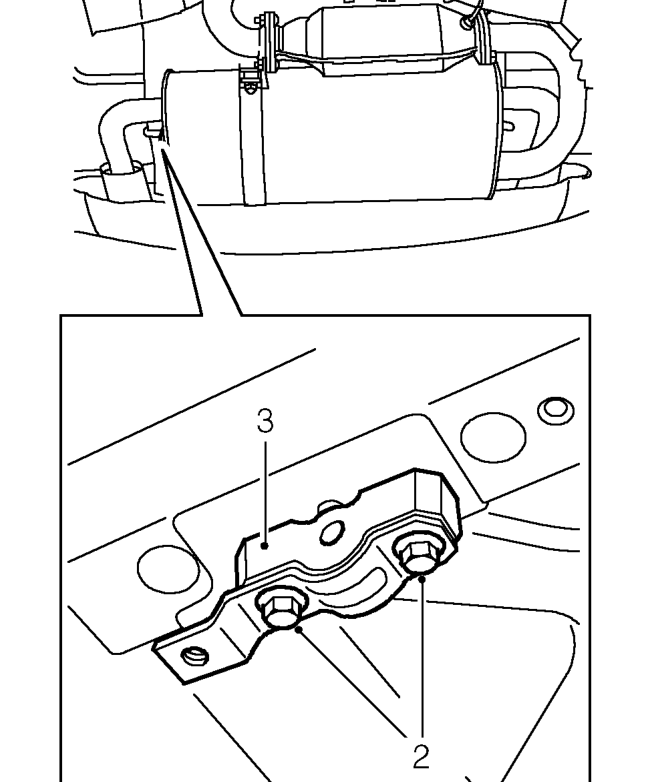

Exhaust mountings – Remove silencer heat shield. See this section.
  1. Remove 4 bolts securing LH and RH exhaust mountings.
  2. Remove brackets and rubbers.

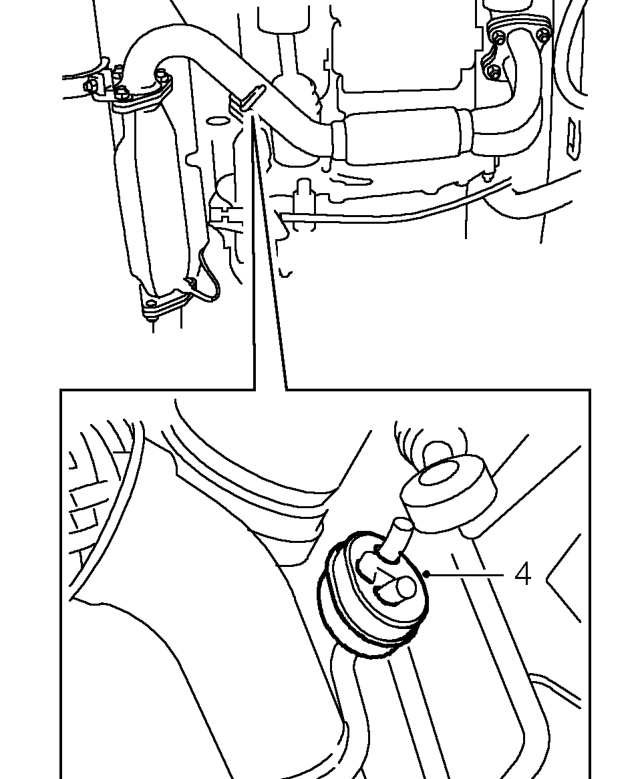

Exhaust mountings – Remove brackets and rubbers.
  1. Remove mounting rubber securing front pipe to subframe.

Refit

  1. Fit mounting rubber securing front pipe to subframe.
  2. Fit LH and RH mounting rubbers and brackets, fit bolts and tighten to 25 Nm.
  3. Fit silencer heat shield. See this section.
