GASKET - EXHAUST MANIFOLD - MPi MEMS 3 (2000MY ON)

Service repair no - 30.15.12

Remove

  1. Disconnect battery earth lead.
  2. Remove engine cover. See ENGINE, Repairs.
  3. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove LH road wheel.
Gasket - exhaust manifold - mpi mems 3 (2000my on) – Remove LH road wheel.

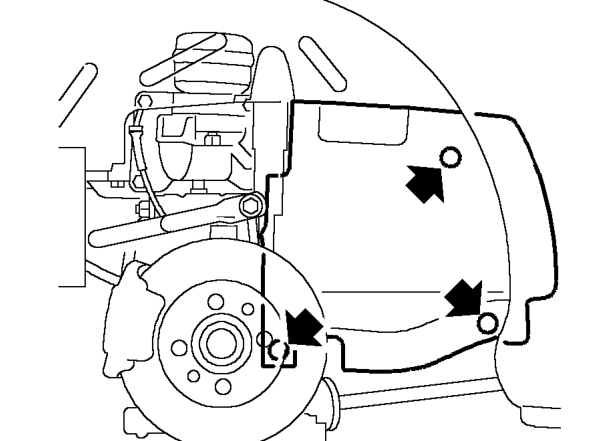

  1. Remove 2 scrivets and 1 Torx screw closing splash panel and remove panel.
Gasket - exhaust manifold - mpi mems 3 (2000my on) – Remove 2 scrivets and 1 Torx screw closing splash panel and remove panel.

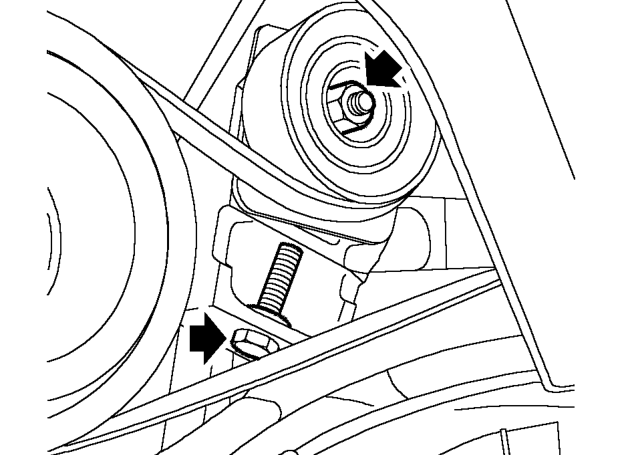

  1. Release tension on alternator drive belt tensioner and remove drive belt.
Gasket - exhaust manifold - mpi mems 3 (2000my on) – Release tension on alternator drive belt tensioner and remove drive belt.

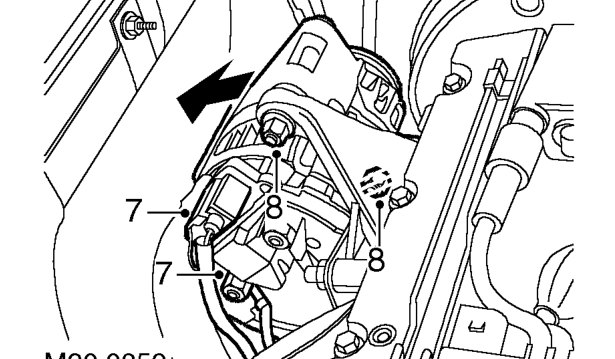

  1. Remove nut securing alternator lead and release lead, disconnect alternator multiplug.
  2. Remove alternator top bolt and loosen lower bolt.
  3. Position alternator forwards to access alternator bracket.
Gasket - exhaust manifold - mpi mems 3 (2000my on) – Position alternator forwards to access alternator bracket.

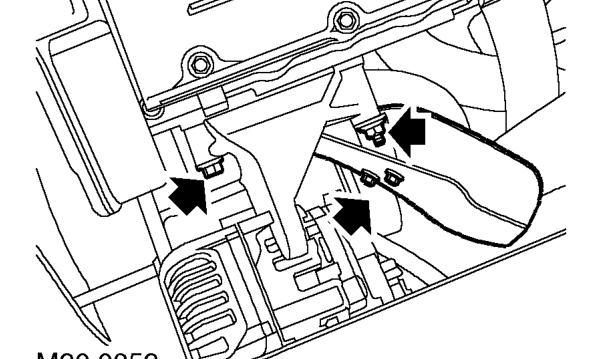

  1. Remove nut and bolt securing alternator bracket.
  2. Remove 2 bolts securing alternator heat shield and remove heat shield.
  3. Collect alternator bracket.
