MG MGF Factory Workshop Manual (1995-2000)08 · Manifold & exhaust systems
08 · Engine

Silencer

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Silencer
Manifold & exhaust systemsSilencer

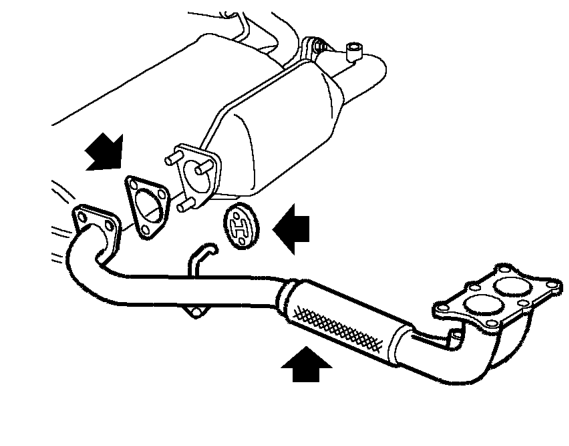

Diagram
  1. Release rubber mounting, remove front pipe and discard gasket.

Refit

  1. Clean front pipe and mating faces.
  2. Fit new gasket and tighten nuts securing front pipe to manifold to 50 Nm.
  3. Fit silencer clamp and tighten nuts securing clamp to front pipe to 50 Nm.
  4. Connect mounting to front pipe.
  5. Fit washer and tighten silencer clamp nut to 30 Nm.
  6. Fit pre catalyst HO2S.See FUEL DELIVERY SYSTEM, Repairs.
  7. Connect battery earth lead.

SILENCER

Service repair no - 30.10.22

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

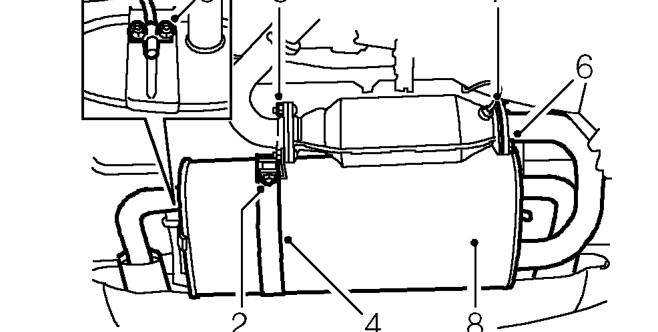

Silencer – Raise rear of vehicle.
  1. Remove nut and special washer securing silencer strap clamp.
  2. Remove 2 flange nuts securing silencer strap clamp.
  3. Remove strap clamp.
  4. Remove 2 flange nuts securing silencer RH mounting bracket, remove mounting bracket.
  5. Remove 3 flange nuts securing silencer to catalyst.
  6. Release catalyst from silencer, remove and discard gasket.
  7. Release silencer from LH mounting bracket, remove silencer.
