GASKET - INLET MANIFOLD CHAMBER - VVC

Service repair no - 30.15.37

Remove

  1. Remove engine compartment access panel. See BODY, Exterior fittings.
  2. Remove engine cover. See ENGINE, Repairs.

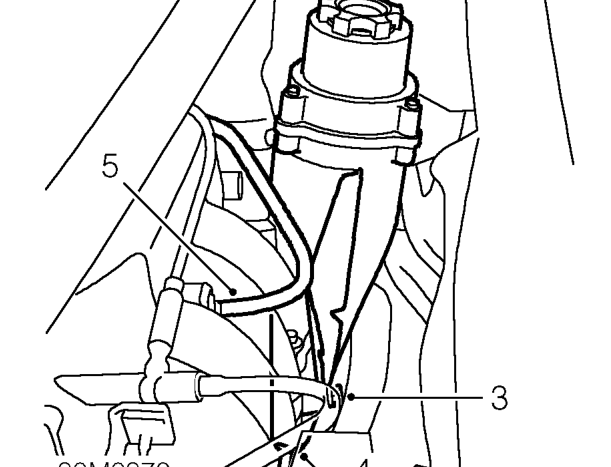

Gasket - inlet manifold chamber - vvc – Remove engine cover. See ENGINE, Repairs.
  1. Remove bolt securing engine oil level dipstick/filler tube bracket to manifold.
  2. Release clip securing dipstick/filler tube to pipe and remove tube.
  3. Release brake servo vacuum pipe from manifold chamber.

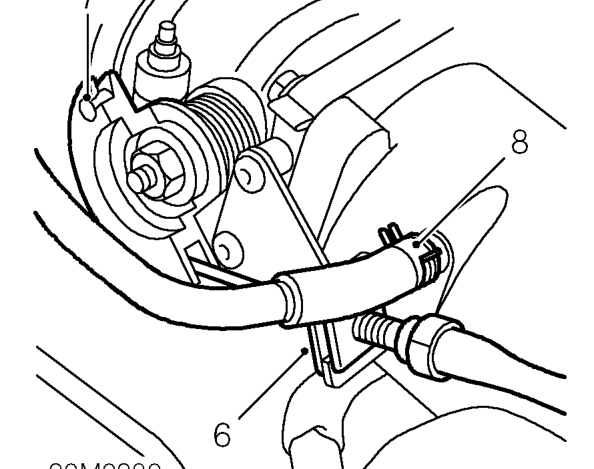

Gasket - inlet manifold chamber - vvc – Release brake servo vacuum pipe from manifold chamber.
  1. Release throttle cable from abutment bracket.
  2. Release inner cable from throttle cam.
  3. Release clip and hose, EVAP cannister to inlet manifold chamber.

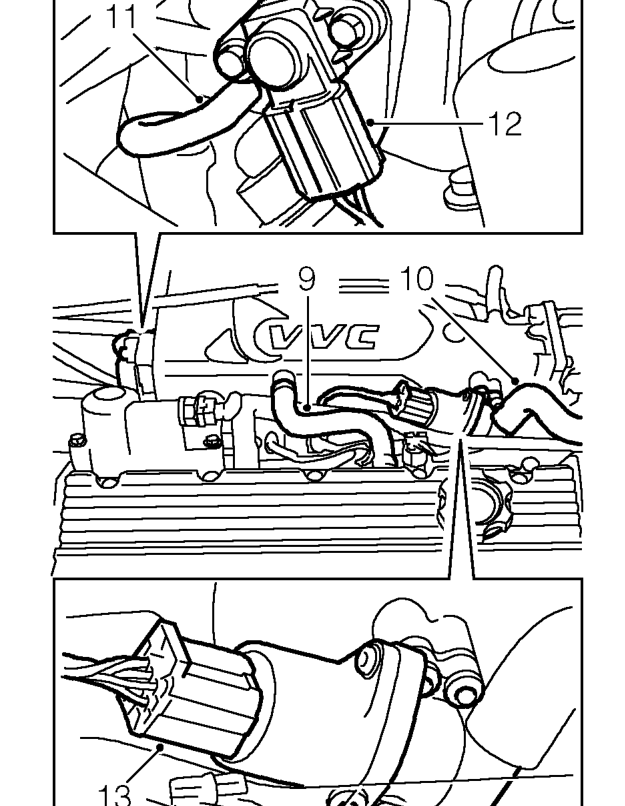

Gasket - inlet manifold chamber - vvc – Release clip and hose, EVAP cannister to inlet manifold chamber.
  1. Release clip and engine breather hose from camshaft cover.
  2. Release hose from air by-pass valve.
  3. Disconnect vacuum hose connecting fuel pressure regulator to manifold chamber.
  4. Disconnect MAP sensor multiplug.
  5. Disconnect idle air by-pass valve multiplug.
