SILENCER HEAT SHIELD

Service repair no - 30.10.44

Remove

  1. Remove silencer. See this section.

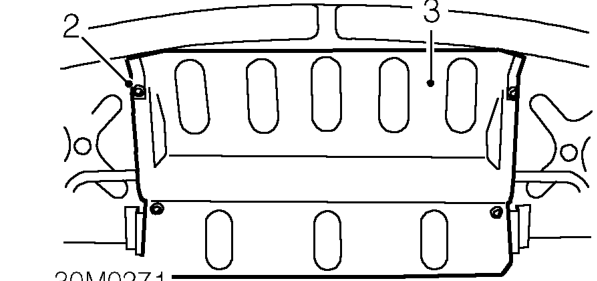

Silencer heat shield – Remove silencer. See this section.
  1. Remove 4 bolts securing silencer heat shield.
  2. Remove heat shield.

Refit

  1. Fit heat shield to underside of vehicle, fit bolts and tighten to 10 Nm.
  2. Fit silencer. See this section.

FUEL TANK HEAT SHIELD

Service repair no - 30.10.64

Remove

  1. Remove engine cover. See ENGINE, Repairs.

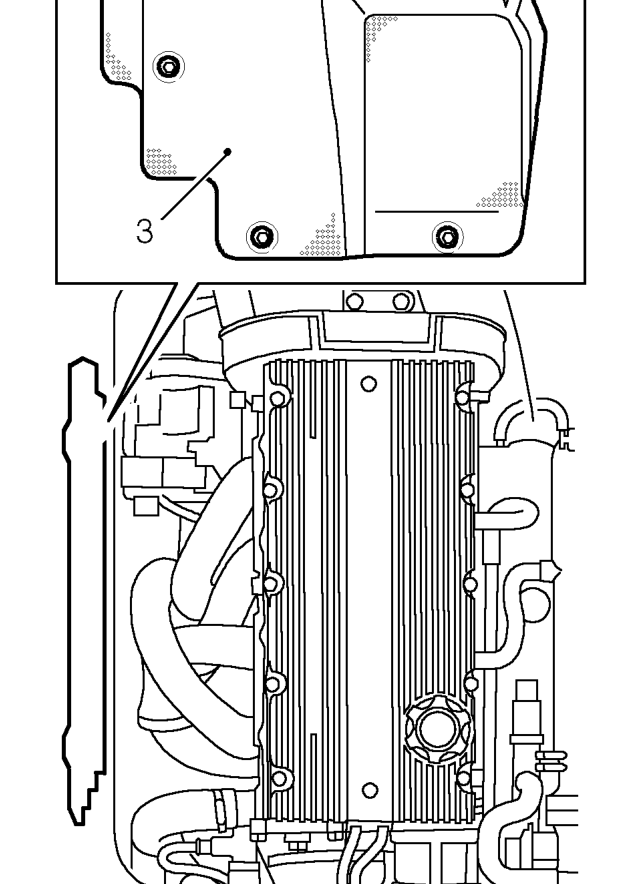

Fuel tank heat shield – Remove engine cover. See ENGINE, Repairs.
  1. Remove 5 nuts securing heat shield to bulkhead.
  2. Remove heat shield.

Refit

  1. Fit heat shield and secure with nuts.
  2. Fit engine cover. See ENGINE, Repairs.
