Manifold & exhaust systemsGasket - inlet manifold - VVC · page 1 of 3
  1. Fit and tighten bolts securing fuel return pipe to manifold.
  2. Connect IAT sensor multiplugs.
  3. Connect throttle inner cable to cam.
  4. Secure throttle cable to abutment bracket.
  5. Secure throttle cable to manifold clip.
  6. Fit EVAP cannister in support bracket.
  7. Connect EVAP cannister to inlet manifold hose and secure clip.
  8. Connect brake servo vacuum hose to inlet manifold.
  9. Fit dipstick/filler tube to pipe.
  10. Align dipstick/filler tube mounting bracket, fit bolt and tighten to 10 Nm.
  11. Fit dipstick.
  12. Secure coil harness to support bracket.
  13. Refill cooling system. See COOLING SYSTEM, Adjustments.
  14. Fit engine cover. See ENGINE, Repairs.
  15. Connect battery earth lead.

GASKET - INLET MANIFOLD - VVC

Service repair no - 30.15.08

Remove

  1. Remove manifold chamber gasket. See this section.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.

CAUTION: Depressurise fuel pressure before disconnecting fuel pipes. See ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.

  1. Position cloth to catch spillage.

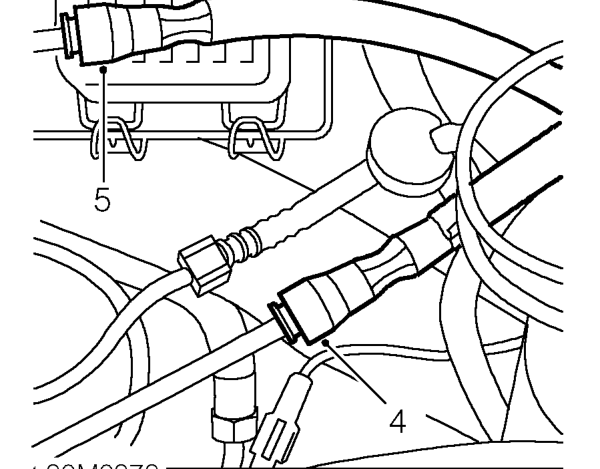

Gasket - inlet manifold - vvc – Position cloth to catch spillage.
  1. Release fuel return hose from fuel return pipe.
  2. Release fuel feed hose from fuel filter pipe.
  3. Position drainage tray to collect coolant spillage.
