Gasket - inlet manifold - VVC (page 3 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Manifold & exhaust systemsGasket - inlet manifold - VVC · page 3 of 3

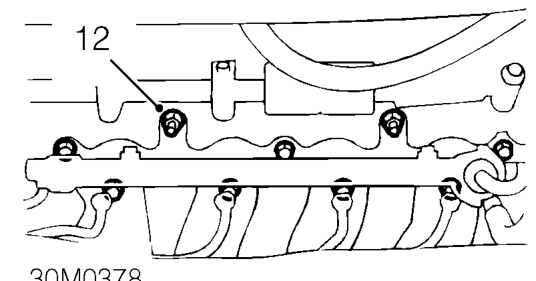

Diagram
  1. Remove 2 nuts and 7 bolts securing inlet manifold to cylinder head.
  2. Remove inlet manifold from cylinder head studs.
  3. Remove and discard gasket seal from inlet manifold.

Refit

  1. Clean manifold to cylinder head mating faces.
  2. Fit NEW gasket seal to cylinder head.
  3. Fit inlet manifold to studs.

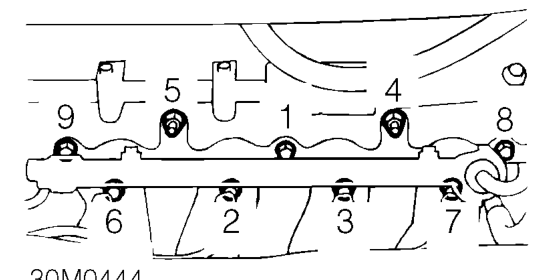

Fit inlet manifold to studs.
  1. Fit nuts and bolts securing inlet manifold to cylinder head and tighten in sequence shown to 25 Nm.
  2. Align support bracket and tighten bolt to 25 Nm.
  3. Secure fuel feed hose to fuel filter pipe.
  4. Secure fuel return hose to return pipe.
  5. Connect air intake temperature sensor multiplug.
  6. Connect injector harness multiplug.
  7. Connect coolant hose to inlet manifold and secure clip.
  8. Fit manifold chamber gasket. See this section.
  9. Refill cooling system. See COOLING SYSTEM, Adjustments.
