Gasket - inlet manifold - VVC (page 2 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Manifold & exhaust systemsGasket - inlet manifold - VVC · page 2 of 3
Diagram
  1. Loosen clip and disconnect coolant hose from inlet manifold.

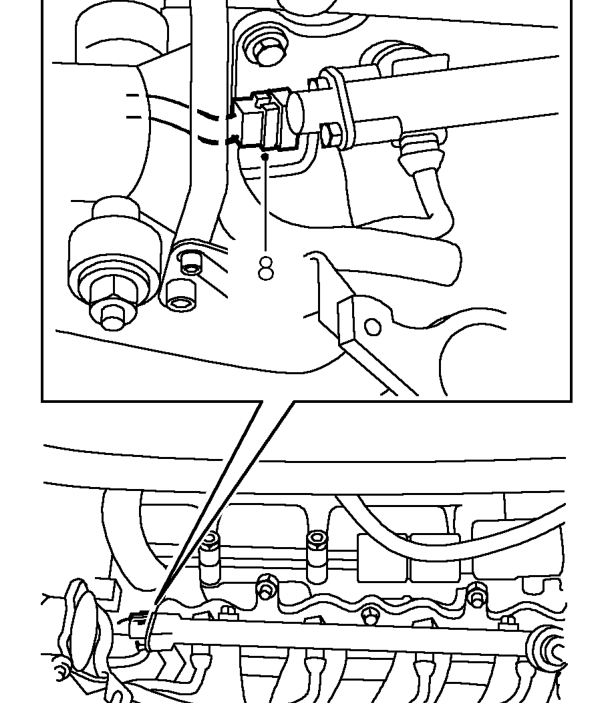

Loosen clip and disconnect coolant hose from inlet manifold.
  1. Disconnect air intake temperature sensor multiplug from manifold.

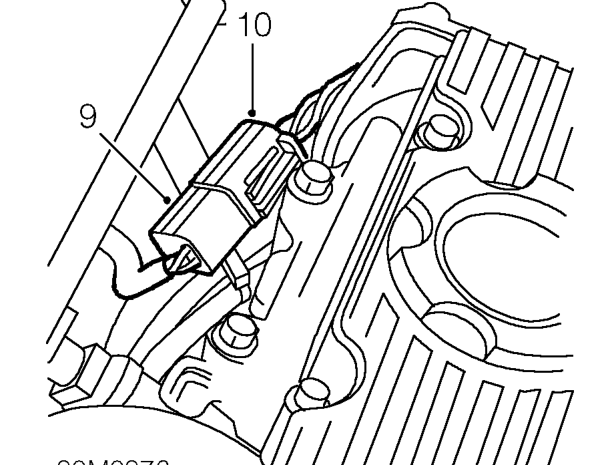

Disconnect air intake temperature sensor multiplug from manifold.
  1. Disconnect injector harness multiplug.
  2. Release injector multiplug from bracket.

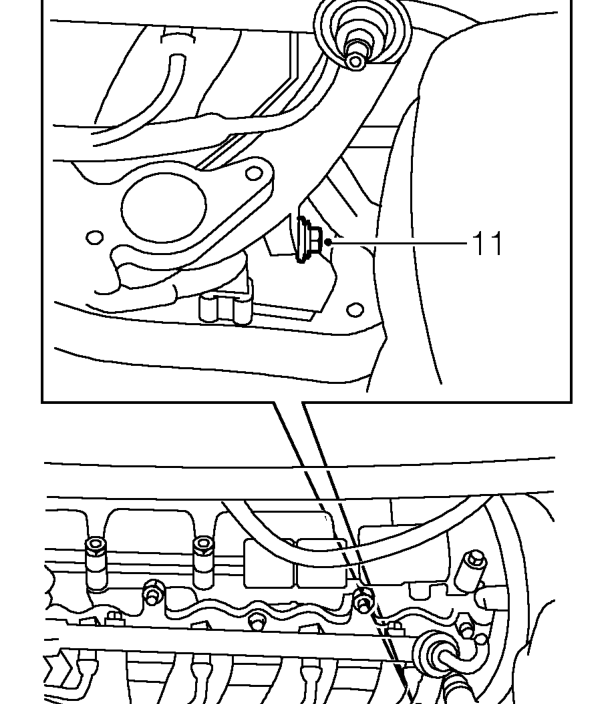

Release injector multiplug from bracket.
  1. Remove bolt securing inlet manifold to support bracket.
