Gasket - inlet manifold chamber - VVC (page 2 of 2)

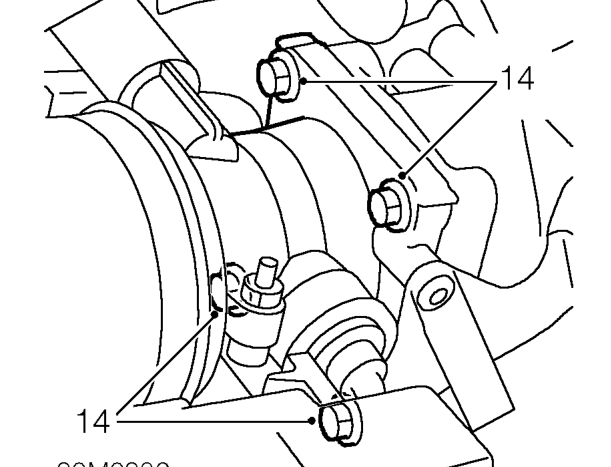

14. Remove 4 bolts securing throttle body to manifold chamber.

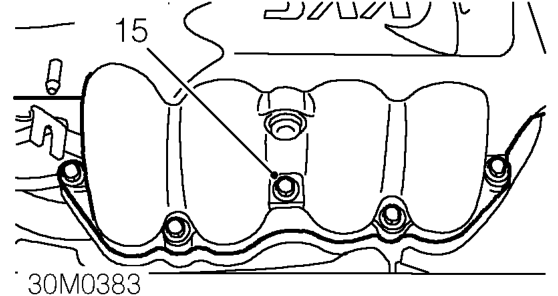

15. Remove 5 bolts securing manifold chamber to inlet manifold.
16. Remove manifold chamber.
17. Remove and discard gasket seal from inlet manifold.
18. Remove and discard ’O’ ring seal from throttle housing.

Refit

1. Clean inlet manifold and manifold chamber mating faces.
2. Fit NEW ’O’ ring seal to throttle housing.
3. Fit NEW gasket seal to inlet manifold and position manifold chamber.
4. Tighten bolts securing manifold chamber to inlet manifold to 25 Nm.
5. Align throttle housing to manifold chamber and bracket to housing.
6. Tighten bolts to 9 Nm.
7. Connect MAP sensor multiplug.
8. Connect idle air valve multiplug.
9. Engage breather hose to manifold chamber and secure with clip.
10. Engage air by-pass hose to valve.
11. Connect throttle inner cable to cam.
12. Secure throttle cable to abutment bracket.
13. Secure throttle cable to manifold clip.
14. Connect EVAP cannister to inlet manifold hose and secure clip.
15. Connect brake servo vacuum hose to inlet manifold.
16. Fit dipstick/filler tube to pipe.
17. Align dipstick/filler tube mounting 10 Nm.
18. Fit engine cover. See ENGINE, Repairs.
19. Fit engine compartment access panel. See BODY, Exterior fittings.
