Mini Mini Workshop Manual (1996-2000)04 · Engine
04 · Engine

Camshaft thrust plate (page 2 of 2)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
EngineCamshaft thrust plate · page 2 of 2
Diagram

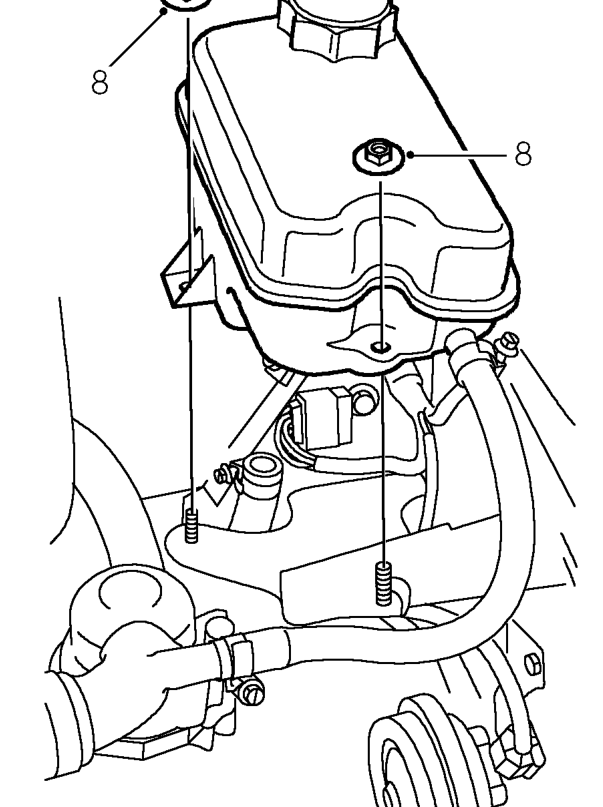

  1. Remove nuts securing expansion tank to mounting bracket and position tank aside.
Remove nuts securing expansion tank to mounting bracket and position tank aside.

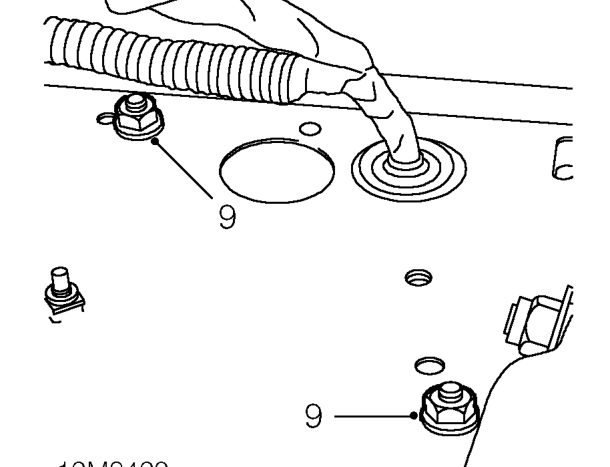

  1. Remove nuts securing expansion tank mounting bracket to body and remove bracket.
  2. Remove bolts securing horn bracket to body and position horn aside.
Remove bolts securing horn bracket to body and position horn aside.

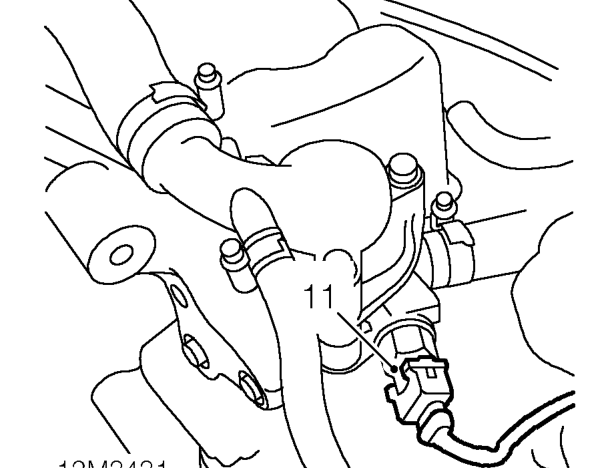

  1. Disconnect multiplug from ECT sensor.
Disconnect multiplug from ECT sensor.

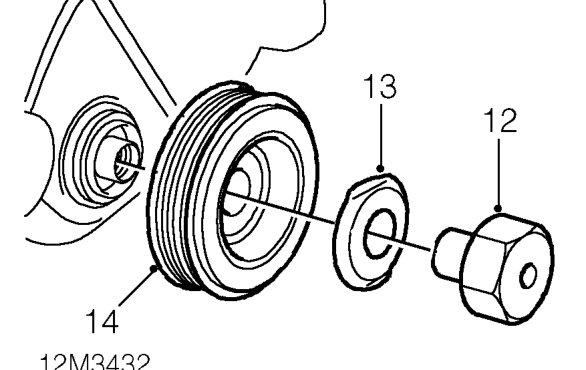

  1. Tap back lock washer from crankshaft pulley bolt and remove bolt.
  2. Remove lockwasher from bolt.
  3. Remove crankshaft pulley.
