EngineRocker cover gasket · page 2 of 2

Refit

1. Ensure rocker shaft is clean and oil passage is clear.
2. Fit rocker shaft assembly locating the rocker screws in the push rods.
3. Fit rocker shaft lock plate.

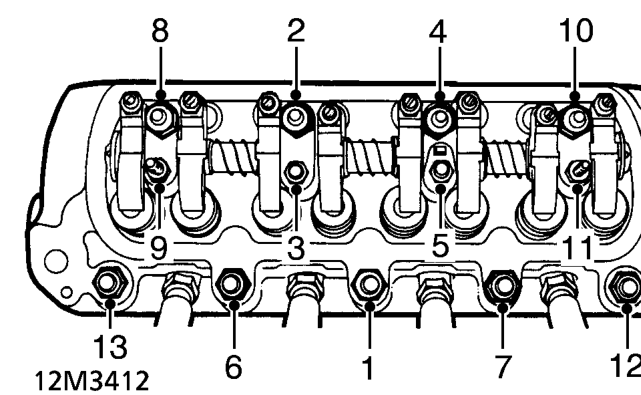

4. Working in sequence shown, tighten the cylinder head nuts to 34 Nm then to 68 Nm.
5. Tighten rocker shaft nuts to 25 Nm.
6. Adjust valve to rocker clearances. See Adjustments.
7. Fit rocker cover. See this section.
8. Fill cooling system. See COOLING SYSTEM, Adjustments.
