Air cleaner

AIR CLEANER

Service repair no - 19.10.01

Remove

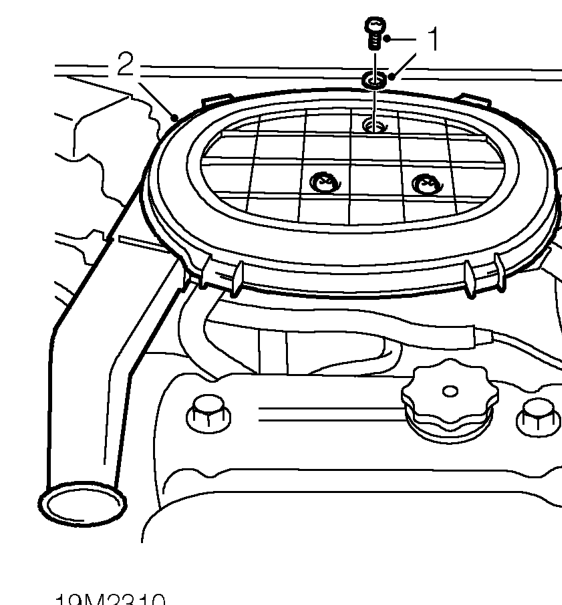

1. Remove 3 screws securing air cleaner to throttle body. Collect washers.
2. Remove air cleaner.

Refit

1. Clean mating face of air cleaner and throttle body.
2. Fit air cleaner to throttle body and align.
3. Fit screws securing air cleaner to throttle body and tighten to 7 Nm.

AIR CLEANER ELEMENT

Service repair no - 19.10.10

Remove

1. Remove air cleaner. See this section.

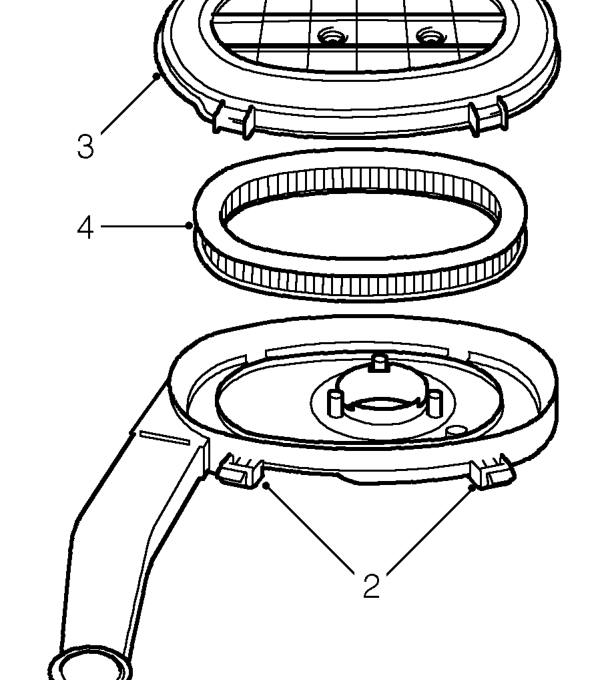

2. Release 4 clips securing 2 halves of air cleaner.
3. Remove upper halve of air cleaner.
4. Remove and discard air cleaner element.

Refit

1. Clean inside of air cleaner.
2. fit new air cleaner element.
3. Position upper half of air cleaner and secure with clips.
4. Fit air cleaner. See this section.
