Engine management system - MEMSCrankshaft position (ckp) sensor

Refit

  1. Clean threads of ECT sensor.
  2. Clean mating faces of ECT sensor and thermostat housing.
  3. Fit new sealing washer to ECT sensor.
  4. Fit ECT sensor and tighten to 15 Nm.
  5. Connect multiplug to ECT sensor.
  6. Top-up coolant. See MAINTENANCEMaintenance.

CRANKSHAFT POSITION (CKP) SENSOR

Service repair no - 18.30.12

Remove

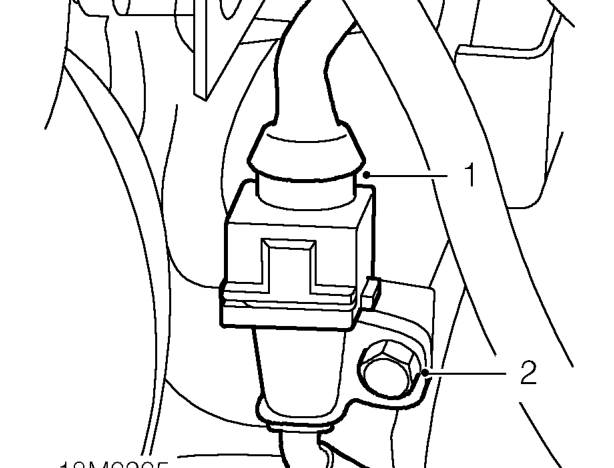

Crankshaft position (ckp) sensor – Service repair no - 18.30.12
  1. Disconnect CKP sensor multiplug from harness.
  2. Remove bolt securing CKP sensor multiplug to flywheel housing.

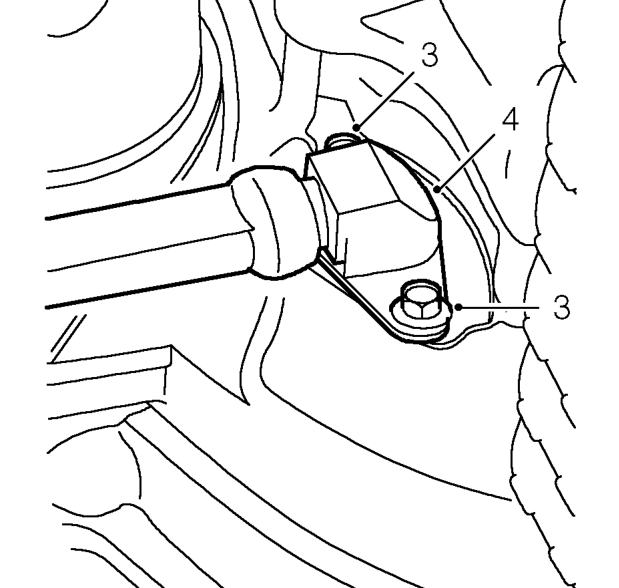

Crankshaft position (ckp) sensor – Remove bolt securing CKP sensor multiplug to flywheel housing.
  1. Remove 2 bolts securing CKP sensor to flywheel housing.
  2. Remove CKP sensor.
