Engine management system - MEMSEngine control module (ECM)

Refit

  1. Position ignition coil to mounting bracket, fit bolts and tighten to 10 Nm.

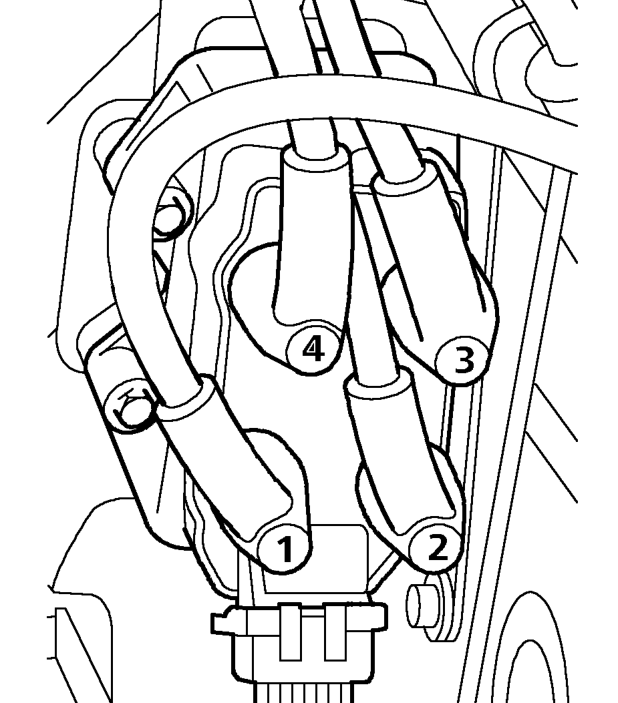

Position ignition coil to mounting bracket, fit bolts and tighten to 10 Nm.
  1. Identify and connect h.t. leads to ignition coil.
  2. Connect multiplug to ignition coil.

ENGINE CONTROL MODULE (ECM)

Service repair no - 18.30.01

Remove

  1. Disconnect battery earth lead.

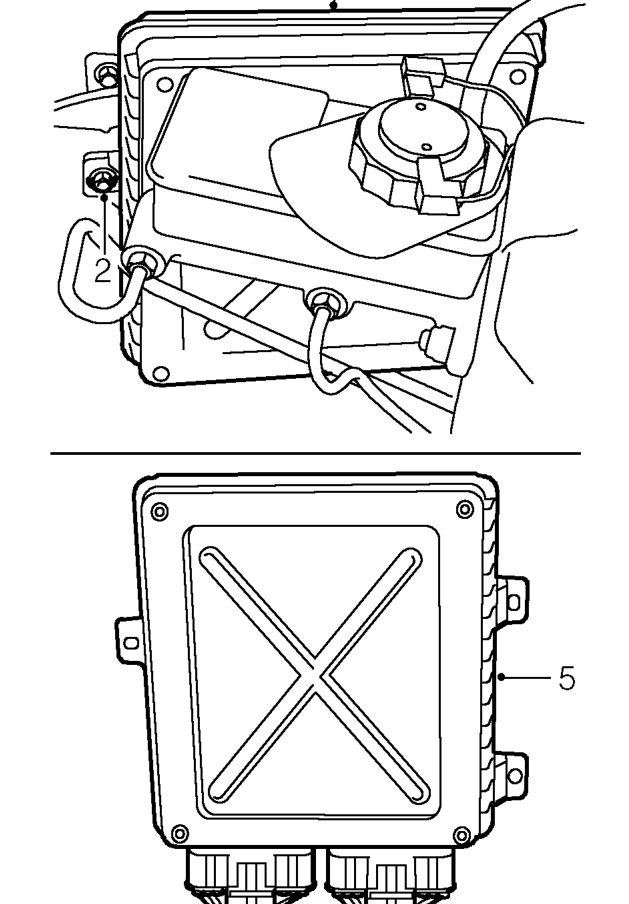

Engine control module (ecm) – Disconnect battery earth lead.
  1. Remove bolt securing ECM to mounting bracket.
  2. Release ECM from mounting bracket.
  3. Disconnect 2 multiplugs from ECM.
  4. Remove ECM.
