Throttle pedal

THROTTLE PEDAL

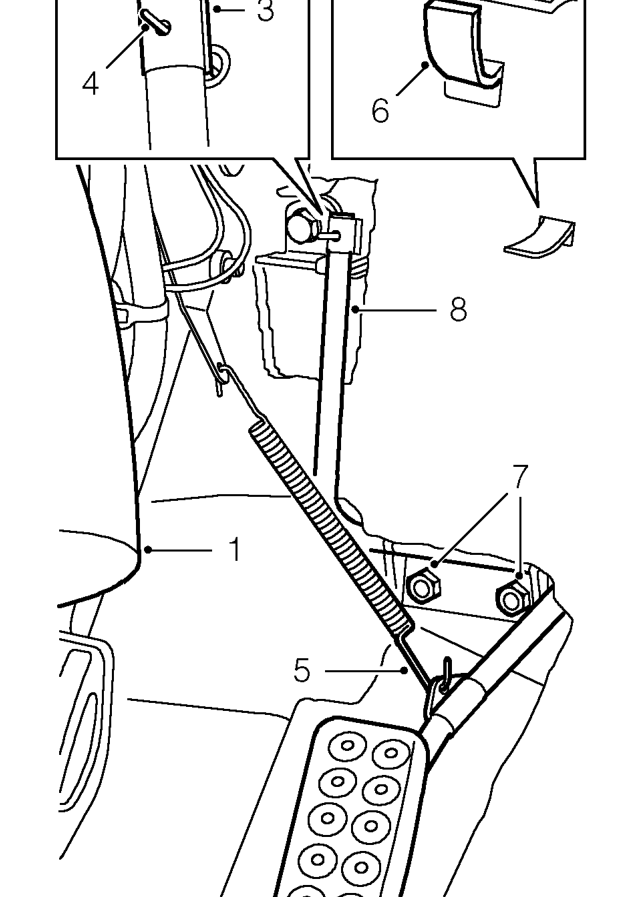

Service repair no - 19.20.01

Remove

1. Release heater air intake duct from adaptor inside vehicle.
2. Position air intake duct aside.
3. Remove clip securing inner cable to throttle pedal.
4. Release inner cable from pedal.
5. Disconnect return spring from throttle pedal.
6. Release carpet retainer and fold back carpet.
7. Remove 2 nuts securing throttle pedal to bulkhead.
8. Remove throttle pedal.
9. Remove return spring clip from throttle pedal.

Refit

1. Fit return spring clip to throttle pedal.
2. Fit throttle pedal to studs on bulkhead.
3. Fit nuts securing throttle pedal to bulkhead and tighten to 25 Nm.
4. Connect return spring to pedal.
5. Connect inner cable to throttle pedal and secure with clip.
6. Connect heater air intake duct to adaptor on body.
7. Adjust throttle cable. See Adjustments.
