Engine management relay module

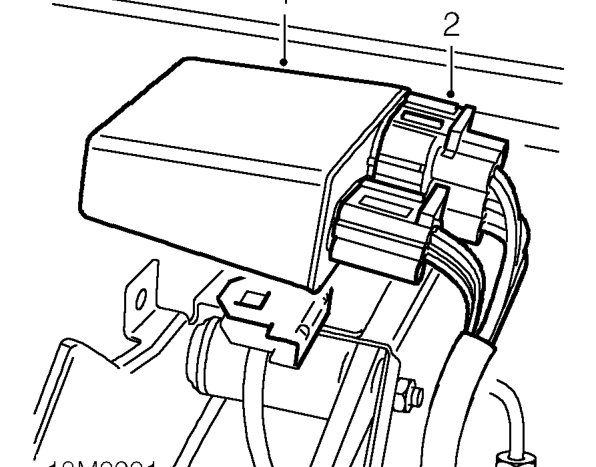

ENGINE MANAGEMENT RELAY MODULE

Service repair no - 18.30.71

The engine management relay module contains the following relays: Main relay Starter relay Fuel pump relay HO2S relay

Remove

1. Release relay module from mounting bracket.
2. Disconnect 2 multiplugs from relay module.
3. Remove relay module.

Refit

1. Position relay module and connect 2 multiplugs. Ensure multiplugs are correctly engaged.
2. Secure relay module to mounting bracket.

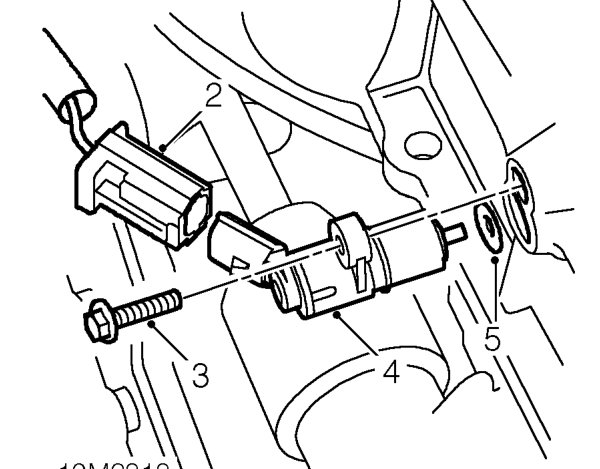

CAMSHAFT POSITION (CMP) SENSOR

Service repair no - 19.22.07

Remove

WARNING: The exhaust manifold reaches very high temperatures when the engine is running and can cause serious burns. Allow engine to cool before commencing work.

1. Remove air cleaner. See this section.

2. Disconnect multiplug from CMP sensor.
3. Remove bolt (8 mm) securing CMP sensor to cylinder block.
4. Remove CMP sensor.
5. Remove ’O’ ring from CMP sensor.

Refit

1. Clean sealing faces of sensor and cylinder head.
2. Lubricate and fit new ’O’ ring to CMP sensor.
3. Fit sensor to cylinder block and tighten bolt to 10 Nm.
4. Connect multiplug to CMP sensor.
5. Fit air cleaner. See this section.
